Steam Train Laser Cut Files: Locomotive and Carriage, SVG DXF
$9.80

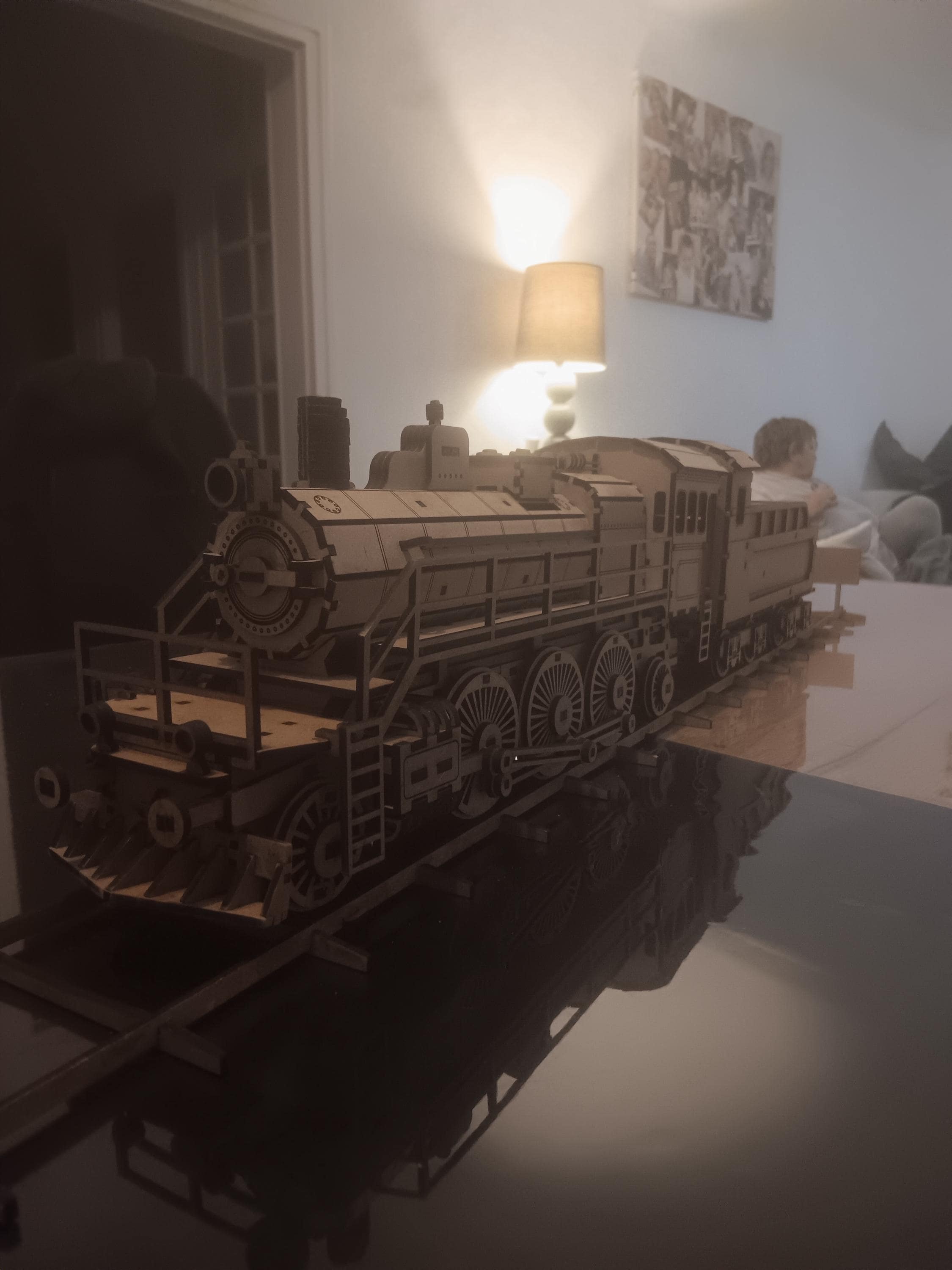

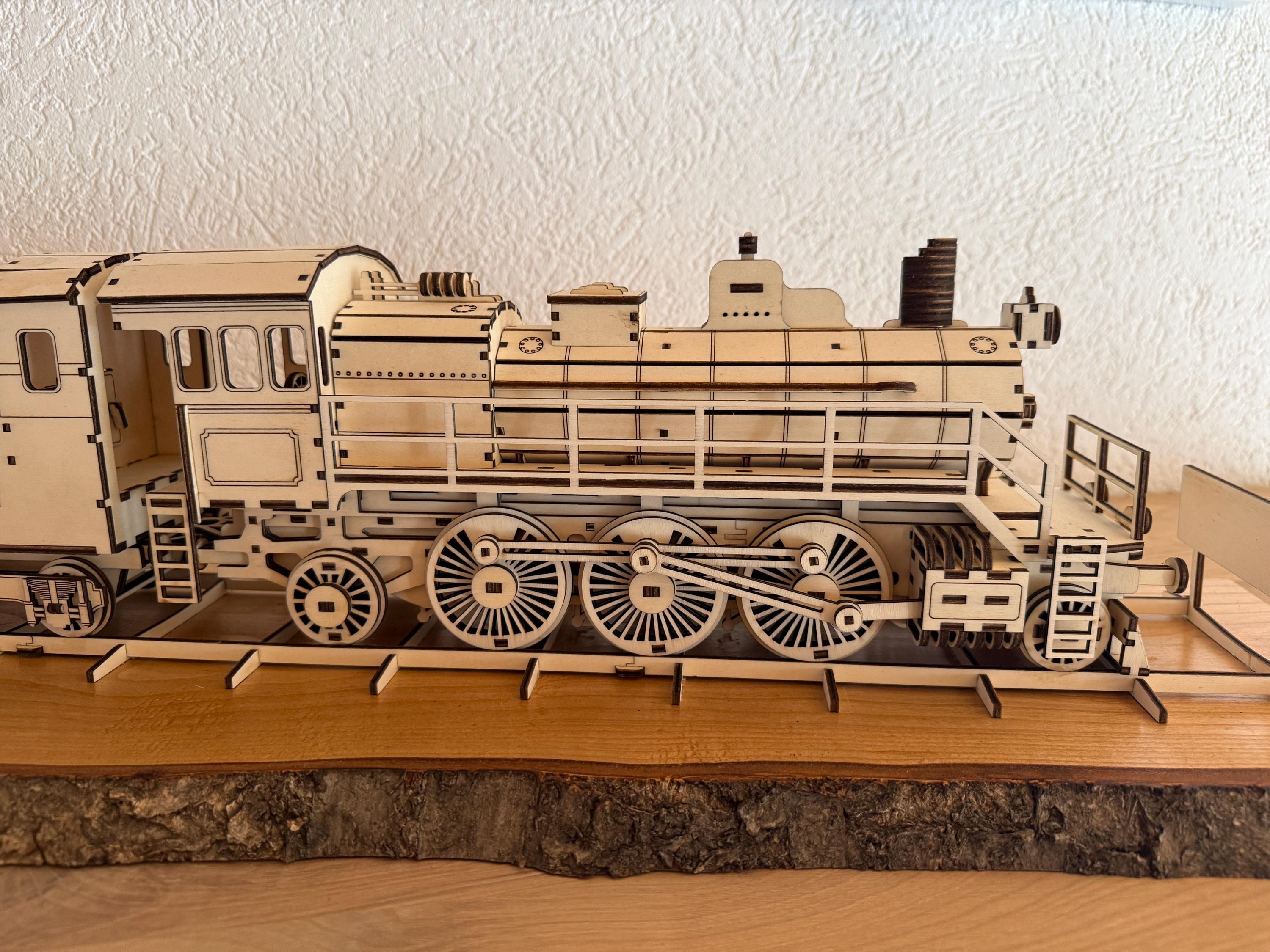

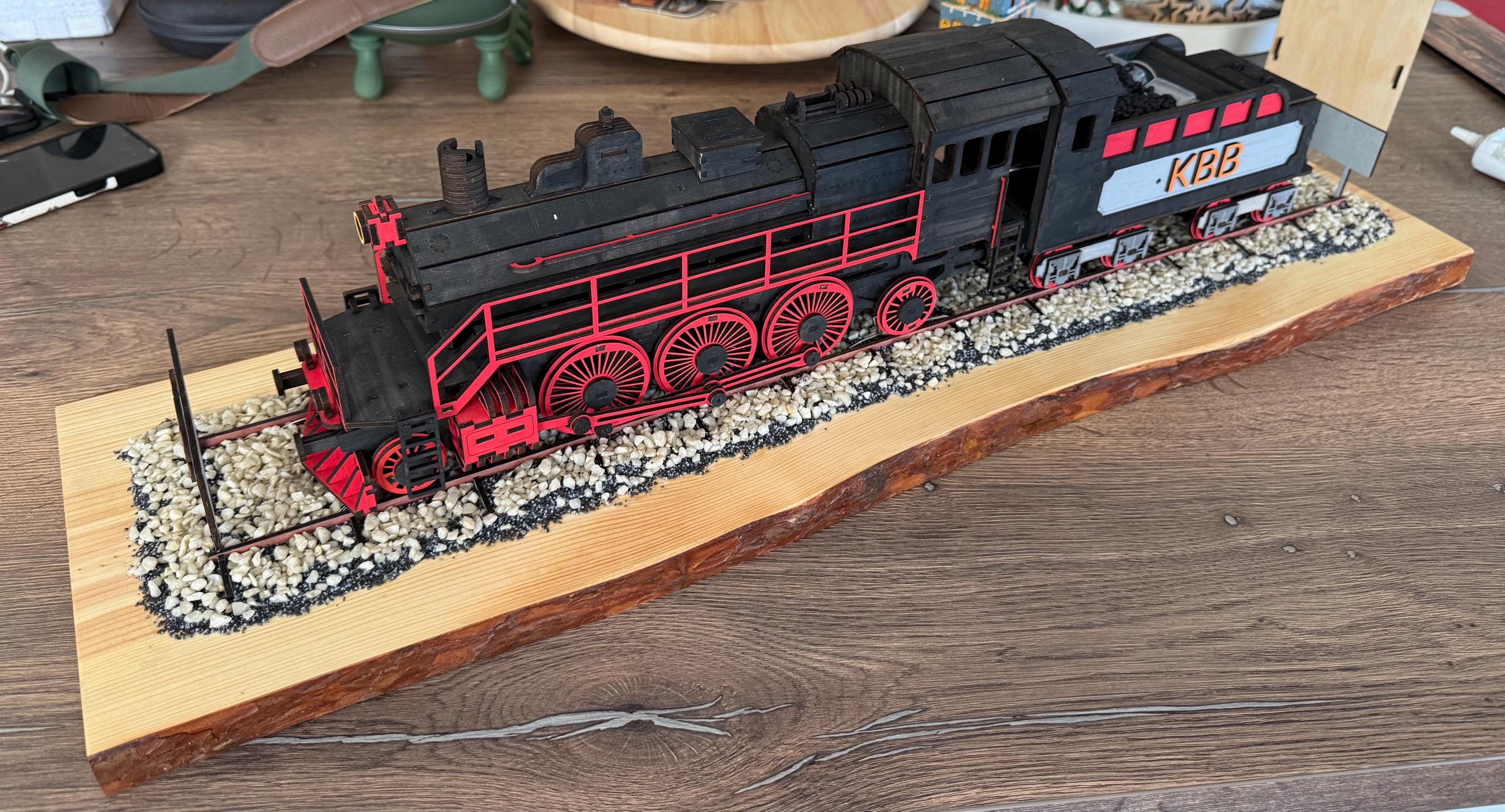

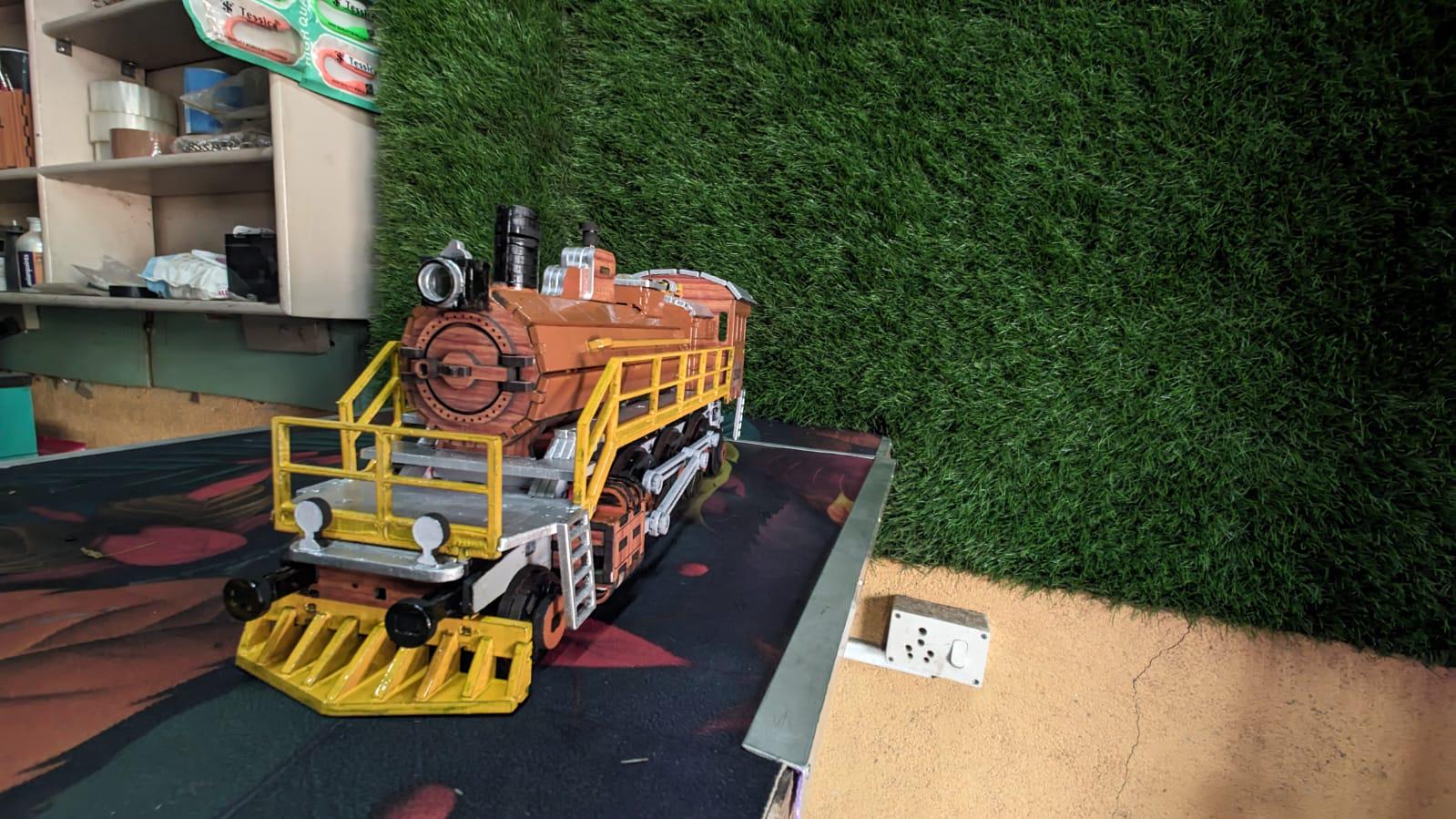

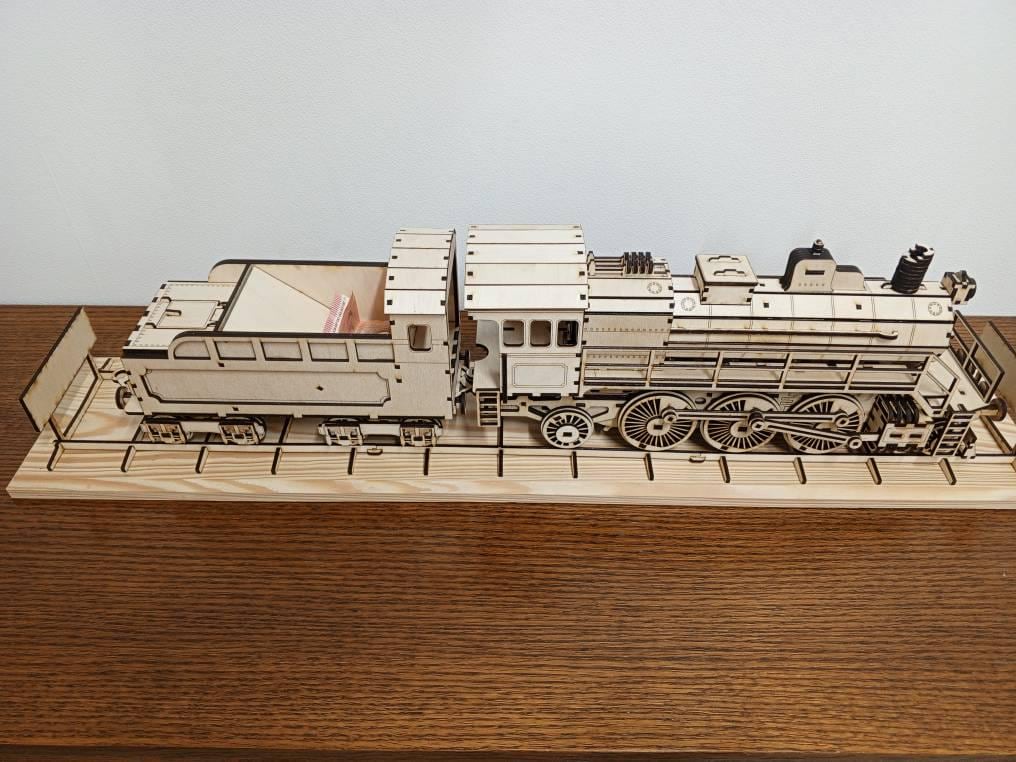

Build a steam locomotive and railway carriage from these digital laser cutting files. The locomotive includes moving wheels and pistons.
This is a digital download for making the design yourself. No physical item, plywood or hardware is shipped.
WHAT YOU RECEIVE
- SVG, DXF design files
- PDF assembly instructions
PROJECT DETAILS
Locomotive: 389 × 156 × 112 mm. Carriage: 276 × 147 × 100 mm. Dimensions are length × width × height.
Versions for 3 mm and 1/8 inch material are supplied, together with PDF assembly instructions.
The 3 mm cutting layout requires thirteen 280 × 280 mm sheets.
BEFORE YOU CUT
Check that your laser software can open the supplied formats and that the layout fits your work area. Use the supplied version that matches your actual material thickness.
If you uniformly enlarge a slotted model, its slots and tabs enlarge too, so proportionally thicker plywood is required. For example, scaling a 3 mm design to 150% requires approximately 4.5 mm actual plywood thickness. Scale all parts equally; the finished dimensions also change. Measure your material and test the fit and kerf before cutting the full project. Message me if you need help with sizing.
USAGE TERMS
Contact 21CNCStudio to discuss permission before commercial use. The digital files may not be distributed without the author's permission.
