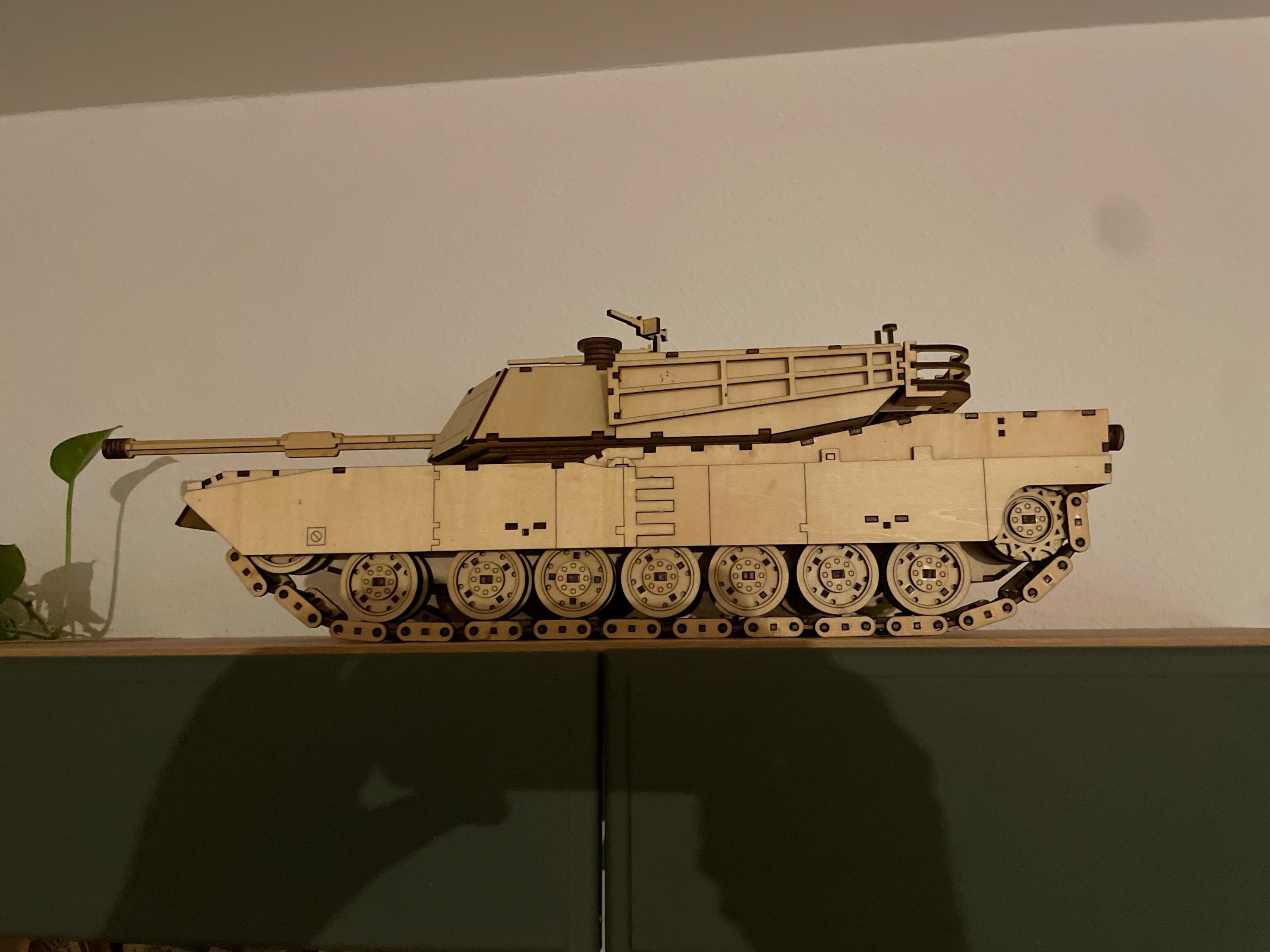

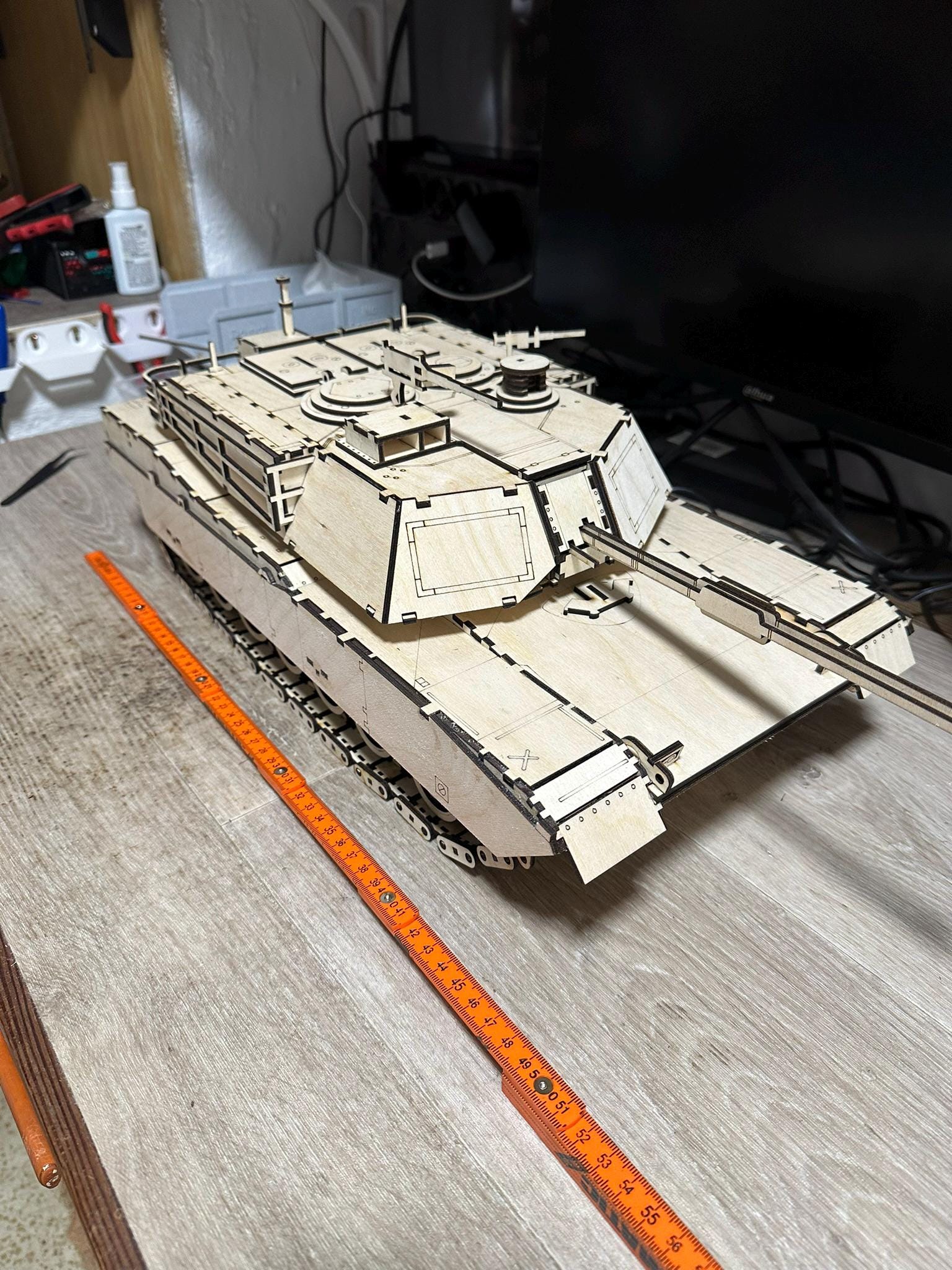

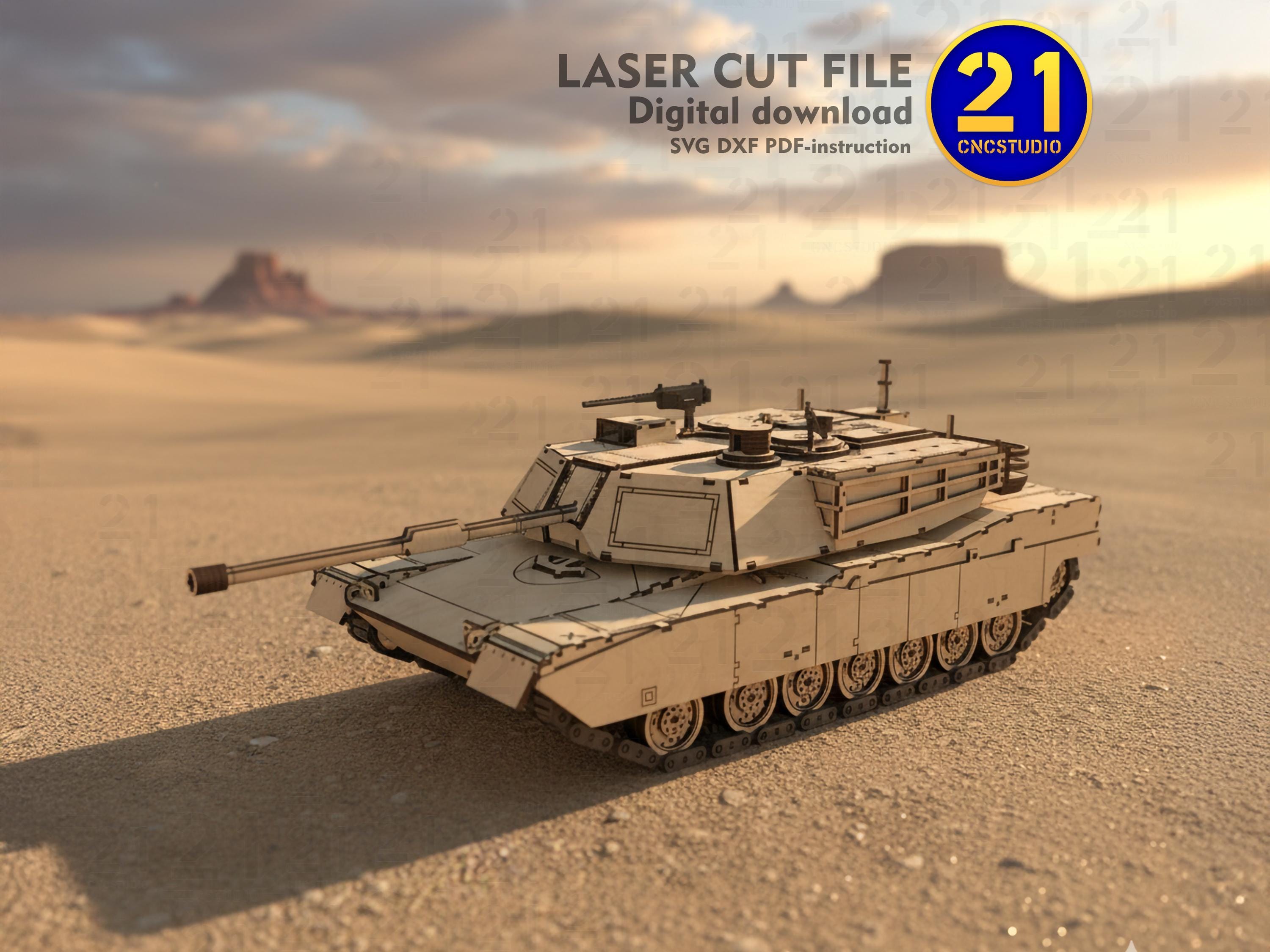

Abrams Tank Model | 1/16 Scale Laser Cut File SVG DXF | Digital Download

Build an incredibly detailed Abrams Tank Model with this advanced 1/16 scale laser cut file. Designed for experienced craftsmen, this digital kit includes over 1,400 parts for maximum realism. This is a digital download for a challenging and rewarding project. No physical item will be shipped.

This advanced DIY laser cutting project offers the pinnacle of detail, making it a standout addition to any military model collection. Every piece has been thoughtfully crafted to achieve maximum accuracy and functionality.

KEY FEATURES
Over 1,400 Detailed Parts: Create a museum-quality model with functional tank tracks, a rotating turret, opening hatches, movable wheels, and a realistic gun barrel.
Impressive Finished Size (1/16 Scale):
Length: 460 mm / 18.1" (570 mm / 22.4" with gun barrel)
Width: 226 mm / 8.9"
Height: 180 mm / 7.1"
Designed for 3mm & 1/8" Plywood: The plans are meticulously designed for this common material thickness.
Optimized for All Machines: The design is segmented, with no single part exceeding 245 mm / 9.6", ensuring full compatibility even with smaller laser cutters.

WHAT’S INCLUDED
SVG and DXF Digital Files: Compatible with all major laser machines like Glowforge, xTool, CO₂ and diode lasers.
Detailed PDF Assembly Instructions: A step-by-step illustrated guide simplifies the complex construction process.
Scaling and Customization Guide: Instructions on how to adapt the design for alternate material thicknesses.

PLEASE NOTE
This is an Advanced Project: It is highly recommended for modelers with previous experience in complex laser cutting projects.
Digital Product Only: You are purchasing a digital download. No physical items will be shipped. Due to the digital nature of this product, refunds are not available.
Flexibility: While designed for 3 mm or 1/8-inch plywood, the design can be scaled. Please contact me if you need assistance.

By completing this impressive Abrams tank project, you’ll create a true masterpiece of laser modeling—a source of pride and admiration for any military model collector.

Copyright © Volodymyr Papush, 21CNCStudio
This product is intended for personal use only. For commercial rights to produce and sell the finished model, please contact me directly for licensing options.
