Front Loader Laser Cut Files: 1/35 Wooden Construction Model
$8.38

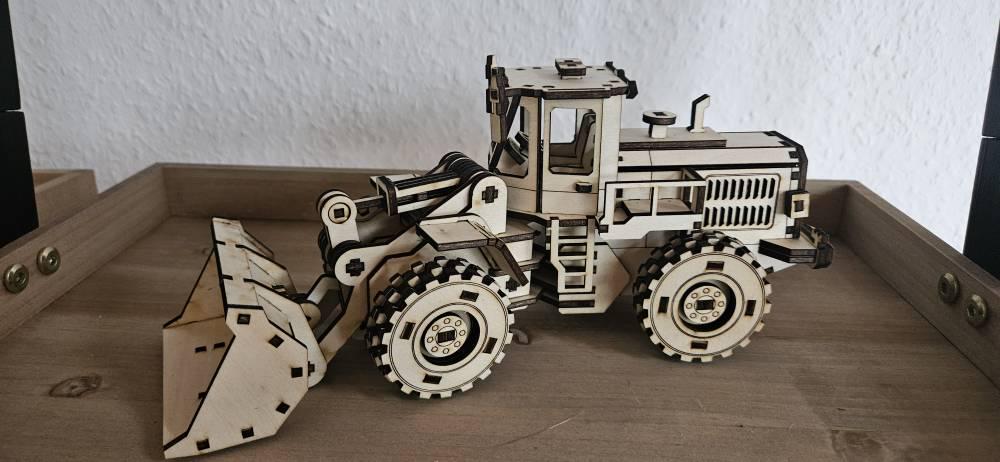

Build a front loader with a bucket that lifts and tilts, rotating wheels, a turning body and an opening cab door. This is an advanced laser cutting project.
This is a digital download for making the design yourself. No physical item, plywood or hardware is shipped.
WHAT YOU RECEIVE
- SVG, DXF design files
- PDF assembly instructions
PROJECT DETAILS
Approximate scale: 1:35. Finished size: 267 × 225 × 114 mm (length × width × height).
Designed for 3 mm and 1/8 inch plywood. The layout uses three 280 × 280 mm sheets.
A PDF assembly guide is included. The finished model has small parts.
BEFORE YOU CUT
Check that your laser software can open the supplied formats and that the layout fits your work area. Use the supplied version that matches your actual material thickness.
If you uniformly enlarge a slotted model, its slots and tabs enlarge too, so proportionally thicker plywood is required. For example, scaling a 3 mm design to 150% requires approximately 4.5 mm actual plywood thickness. Scale all parts equally; the finished dimensions also change. Measure your material and test the fit and kerf before cutting the full project. Message me if you need help with sizing.
USAGE TERMS
For personal use. Contact 21CNCStudio before using this design commercially or selling finished items. Do not resell, share or redistribute the digital files without permission.
Digital downloads
File delivery
Your files will be available to download once payment is confirmed.
Payment Options
Returns & Exchanges
Returns & exchanges not accepted
But please contact me if you have problems with your order
Privacy policy
21CNCStudio File Use Policy
Welcome to 21CNCStudio! My name is Volodymyr Papush, and I appreciate your interest in my work. To ensure understanding and compliance with the usage of our laser cutting files, please review our policy below.
Personal Use:
Upon purchasing files from 21CNCStudio, you are granted the right to use them for creating models for personal purposes only. This means you are free to create items for yourself, friends, and family without any commercial intent.
Commercial Use and Distribution:
Any commercial use of the purchased files, including selling products made with them, without prior consent is prohibited. Distribution or sharing of the files with third parties is also prohibited. Copyrights on the designs are protected and enforceable in 160 countries worldwide.
Copyright Protection:
We take copyright protection seriously and will take appropriate measures in the event of infringement. This may include legal action to protect our rights and intellectual property.
Commercial License:
If you are interested in using our files for commercial purposes, please contact me directly to discuss the terms of obtaining a commercial license.
Thank you for understanding and adhering to our policy. We value your support and are committed to providing high-quality files for your projects.
Best regards,
Volodymyr Papush, 21CNCStudio
Reviews (21)
Average:
Nov 3, 2026

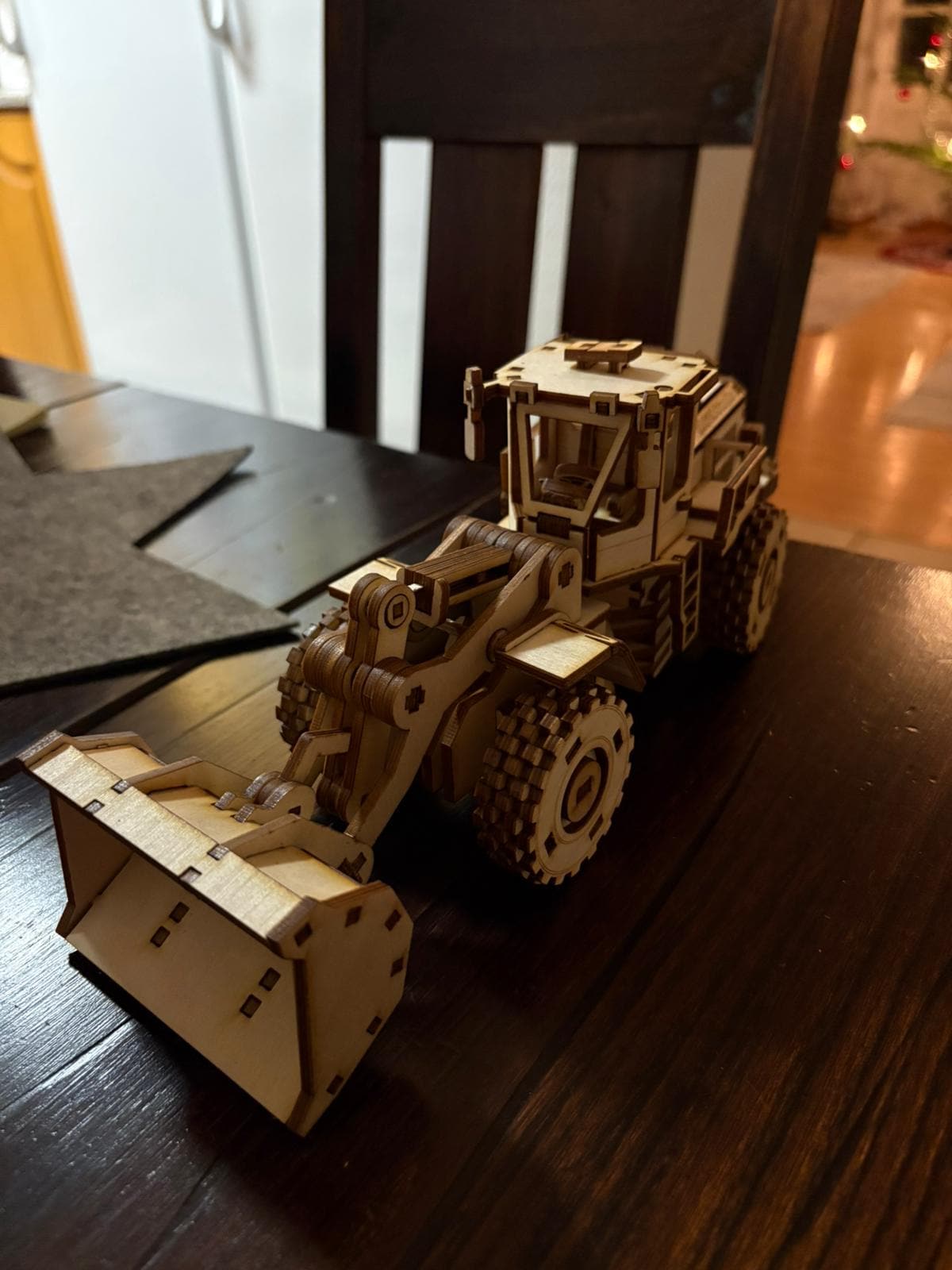

Awesome! Loved putting this together... My only sadness... Its very small... Compared to the truck and trailer I made for it to go on... Just looks a lil funny lol but again it's still an awesome buy!
