Articulated Dump Truck 3D Laser Cut File | 1:35 Construction Vehicle SVG DXF | Digital Download

$10.19 $11.32

Instant Digital Download

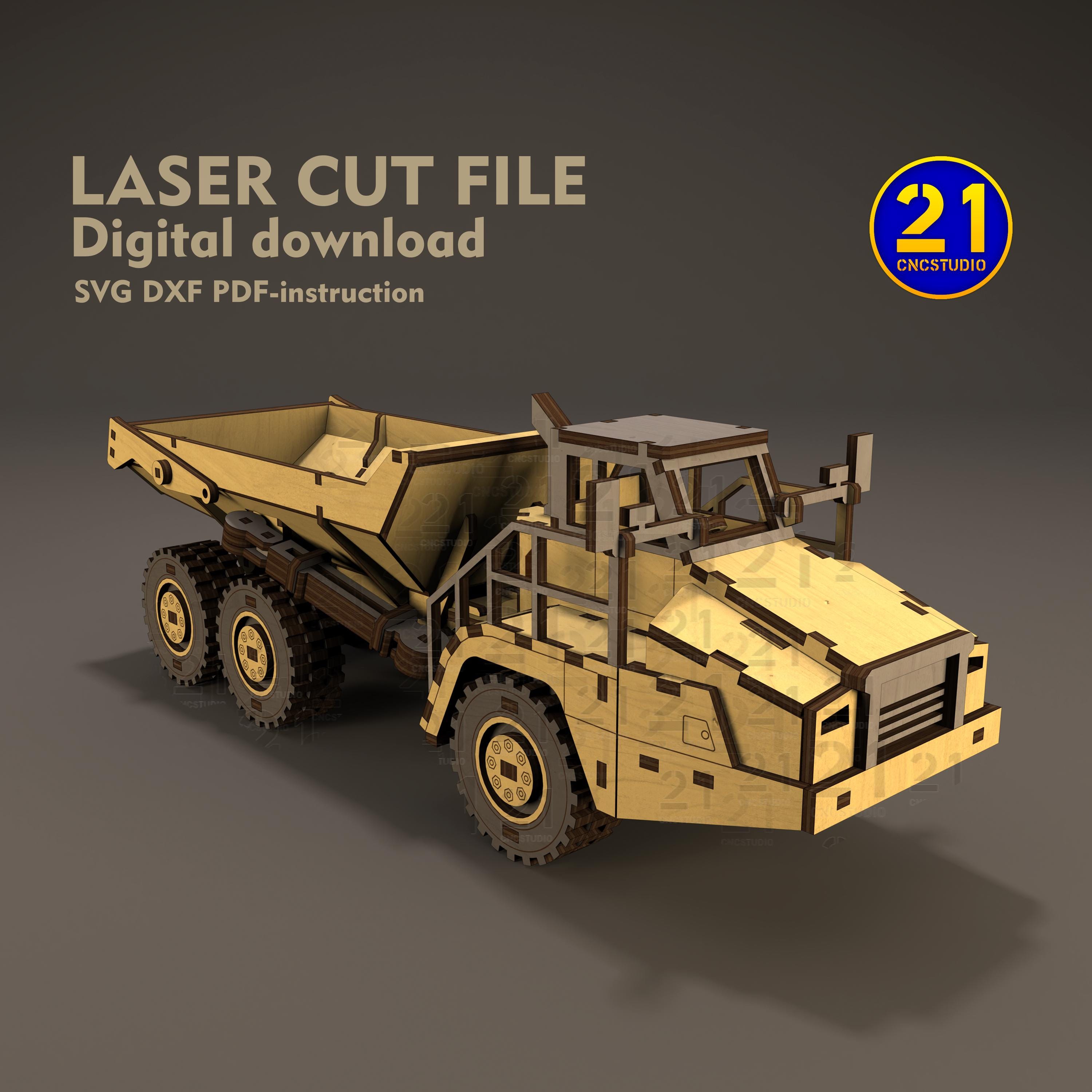

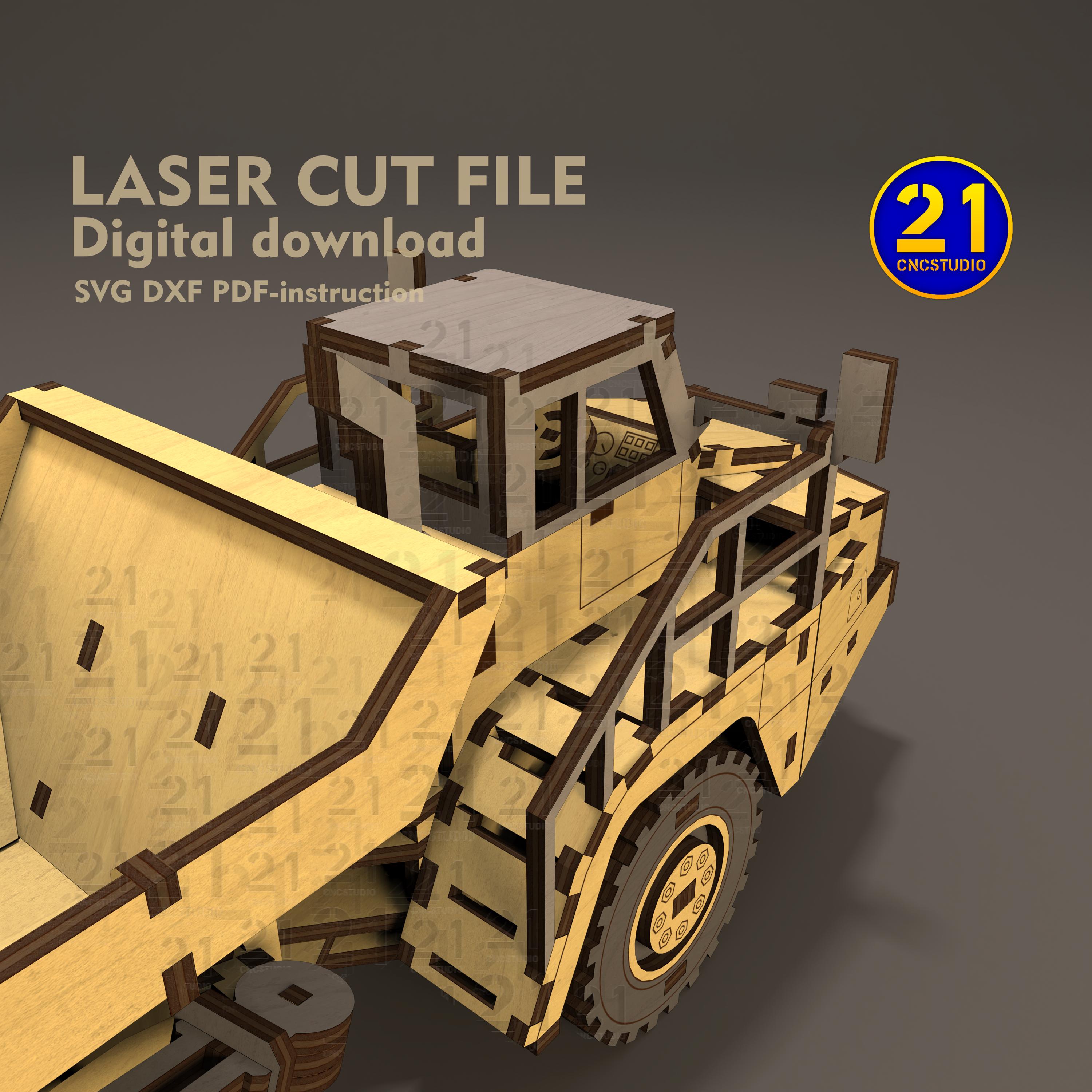

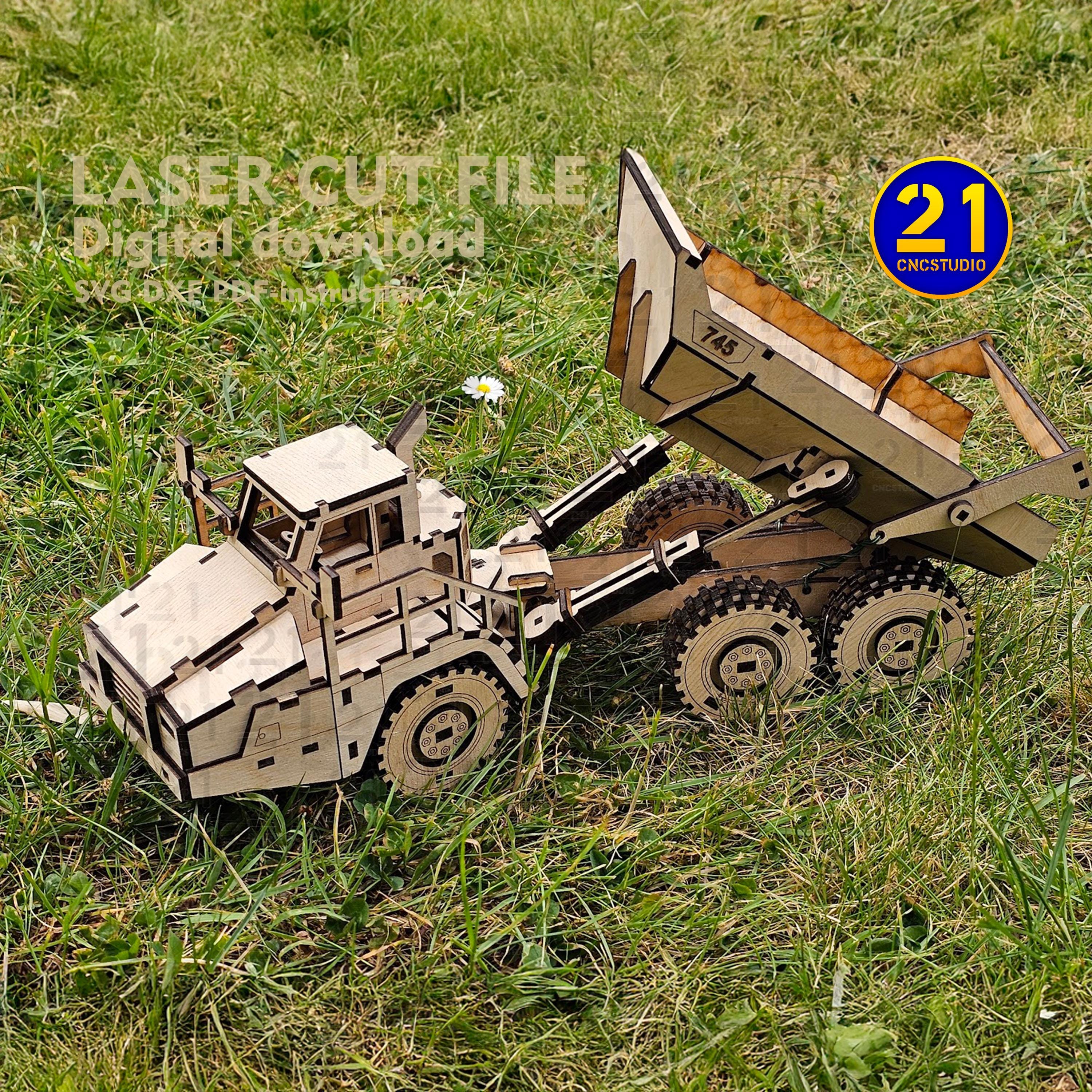

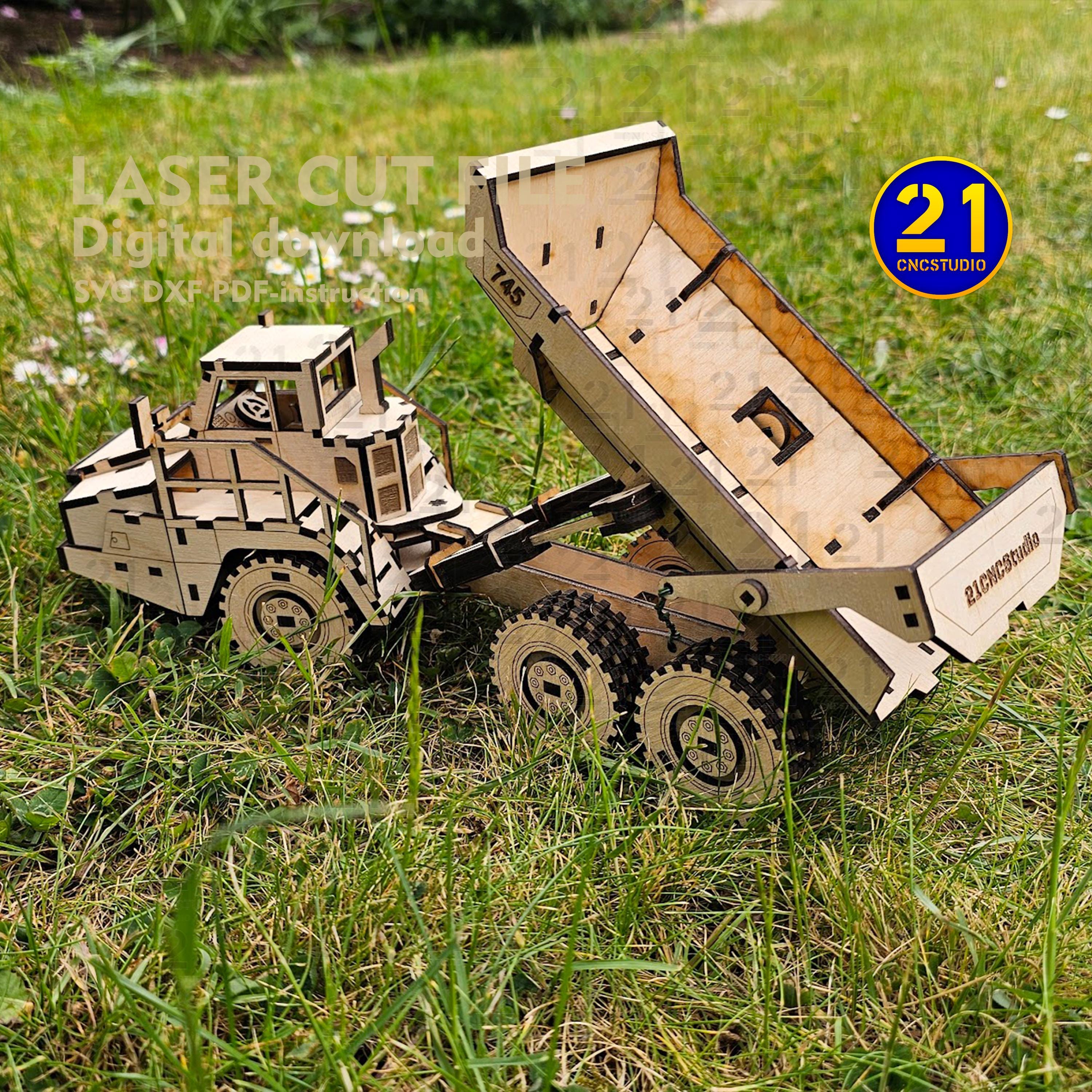

Build your own articulated dump truck with this highly detailed 3D wooden model. Designed for laser cutting, this digital file is perfect for experienced builders who enjoy engineering-style projects. The model replicates the real truck’s functionality — including a tilting dump bed, rotating wheels and articulated steering.

Whether you're a fan of construction vehicles or a maker seeking a rewarding challenge, this project delivers a satisfying and realistic building experience.

Model Dimensions (assembled):
• Length: 310 mm
• Width: 103 mm
• Height: 120 mm
• Scale: ~1:35

Key Features:

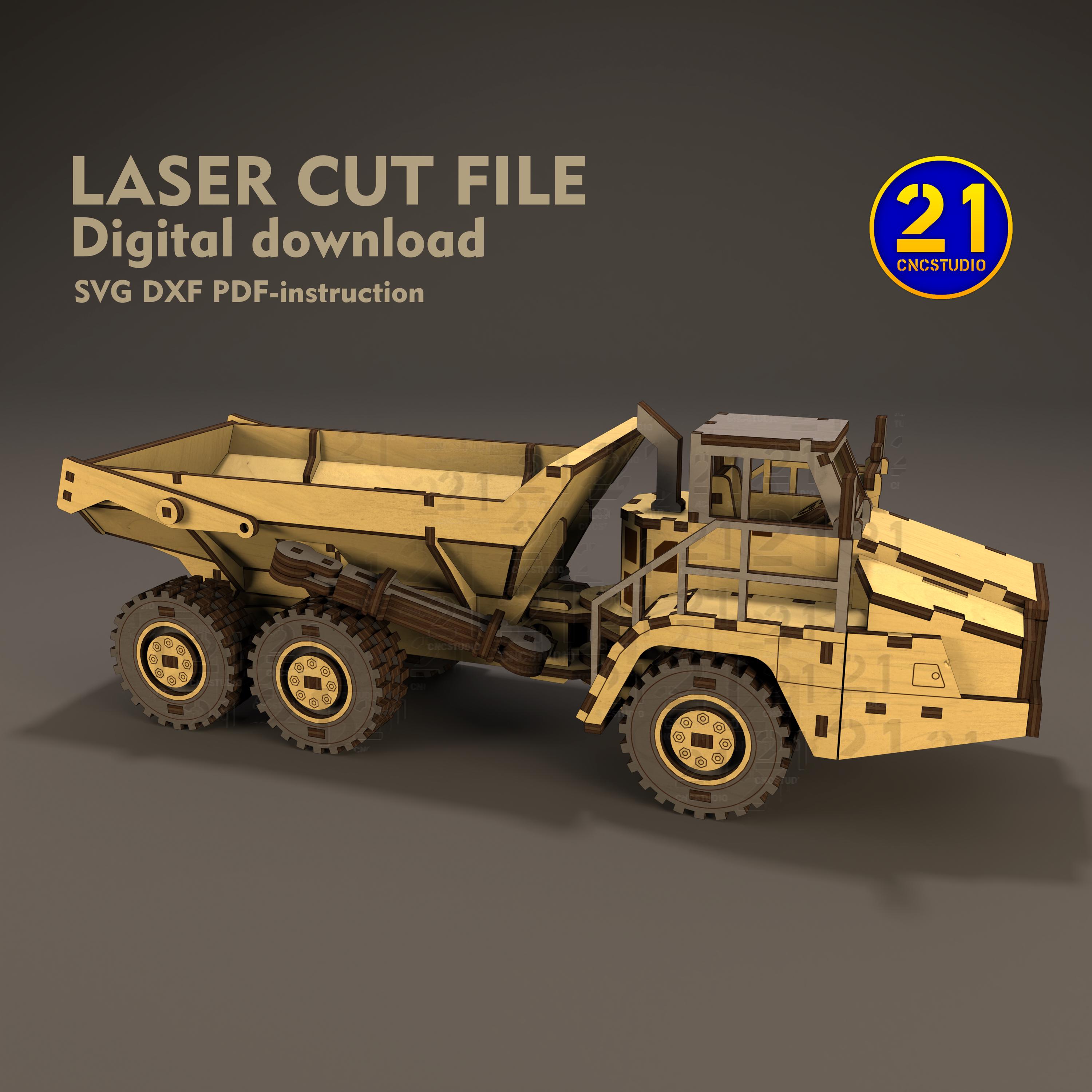

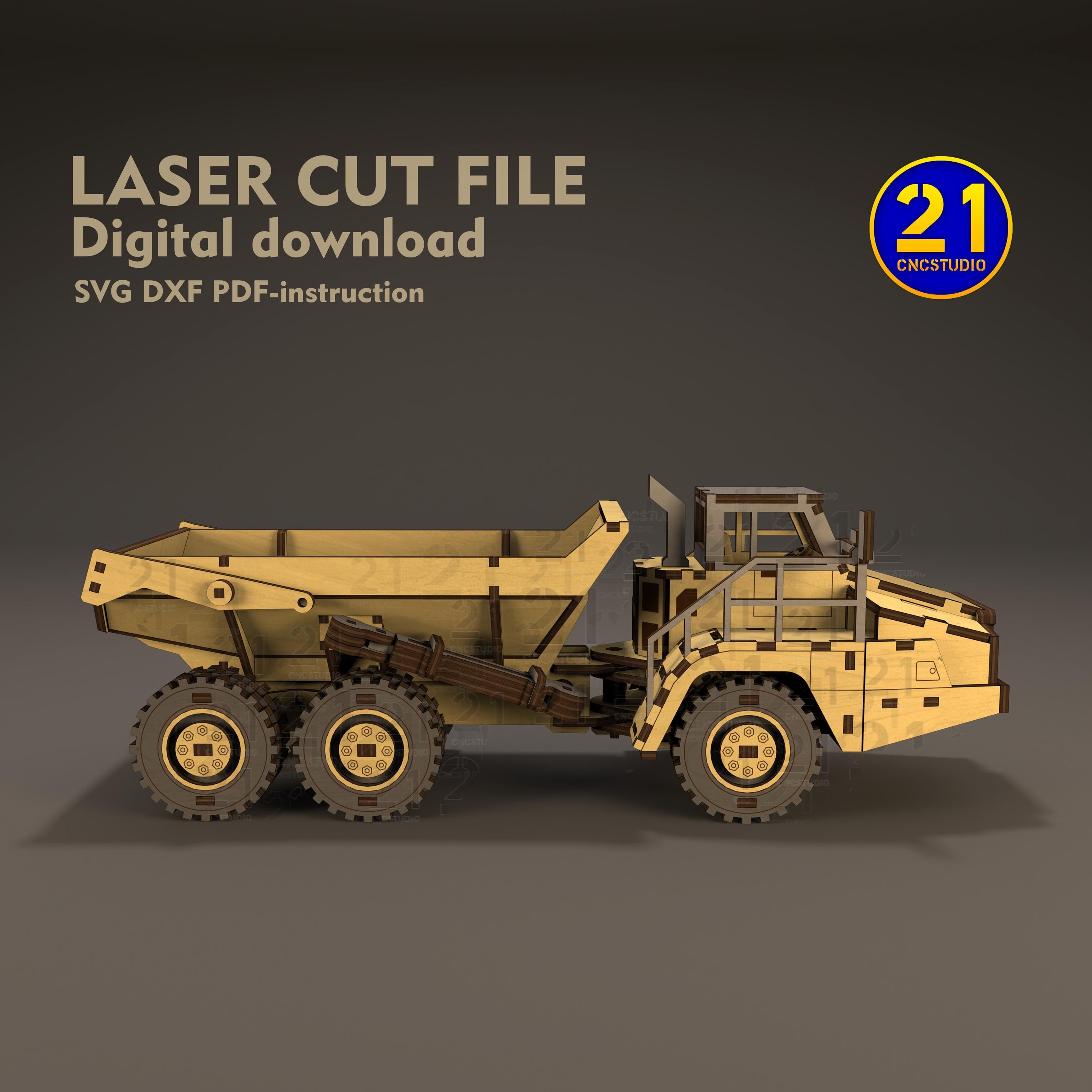

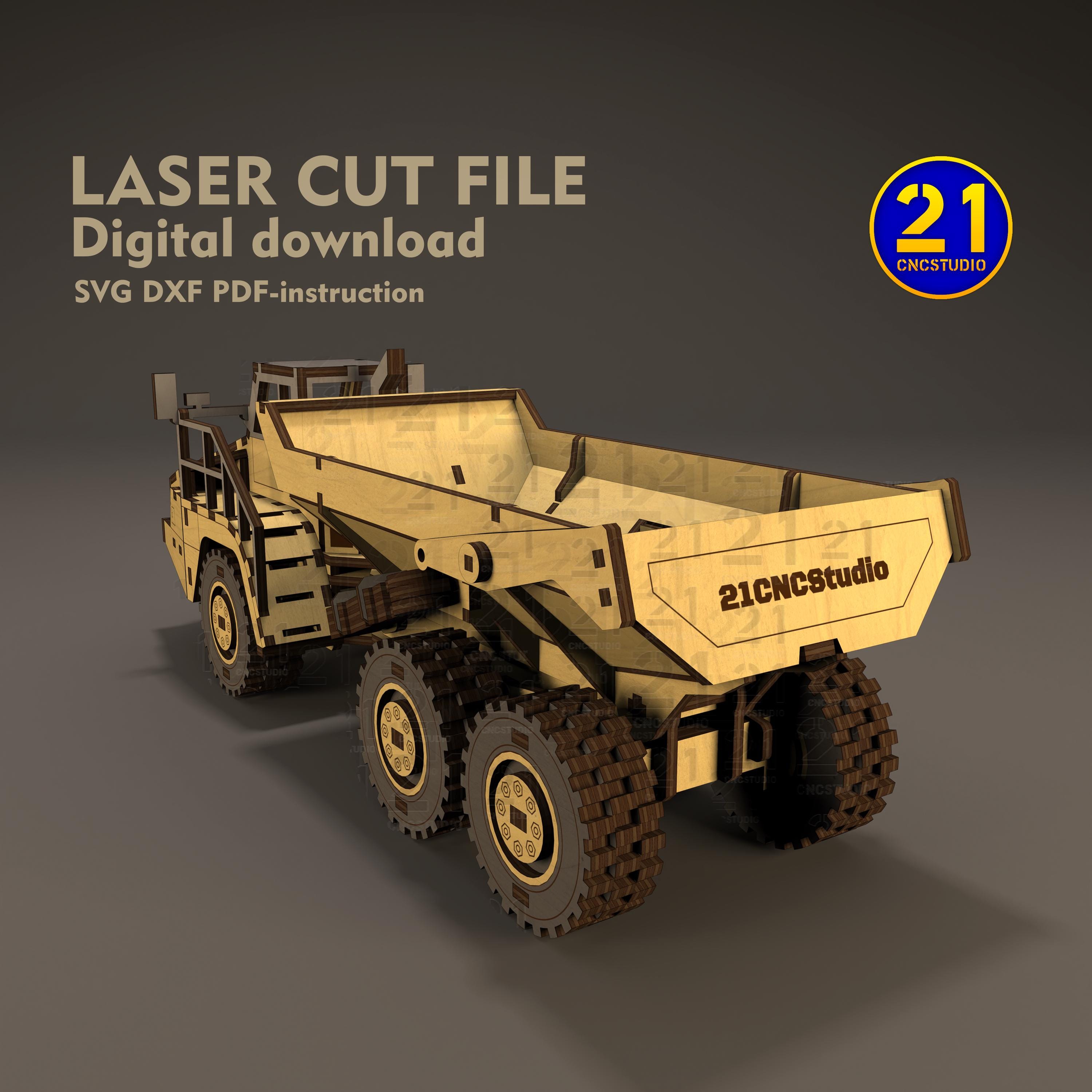

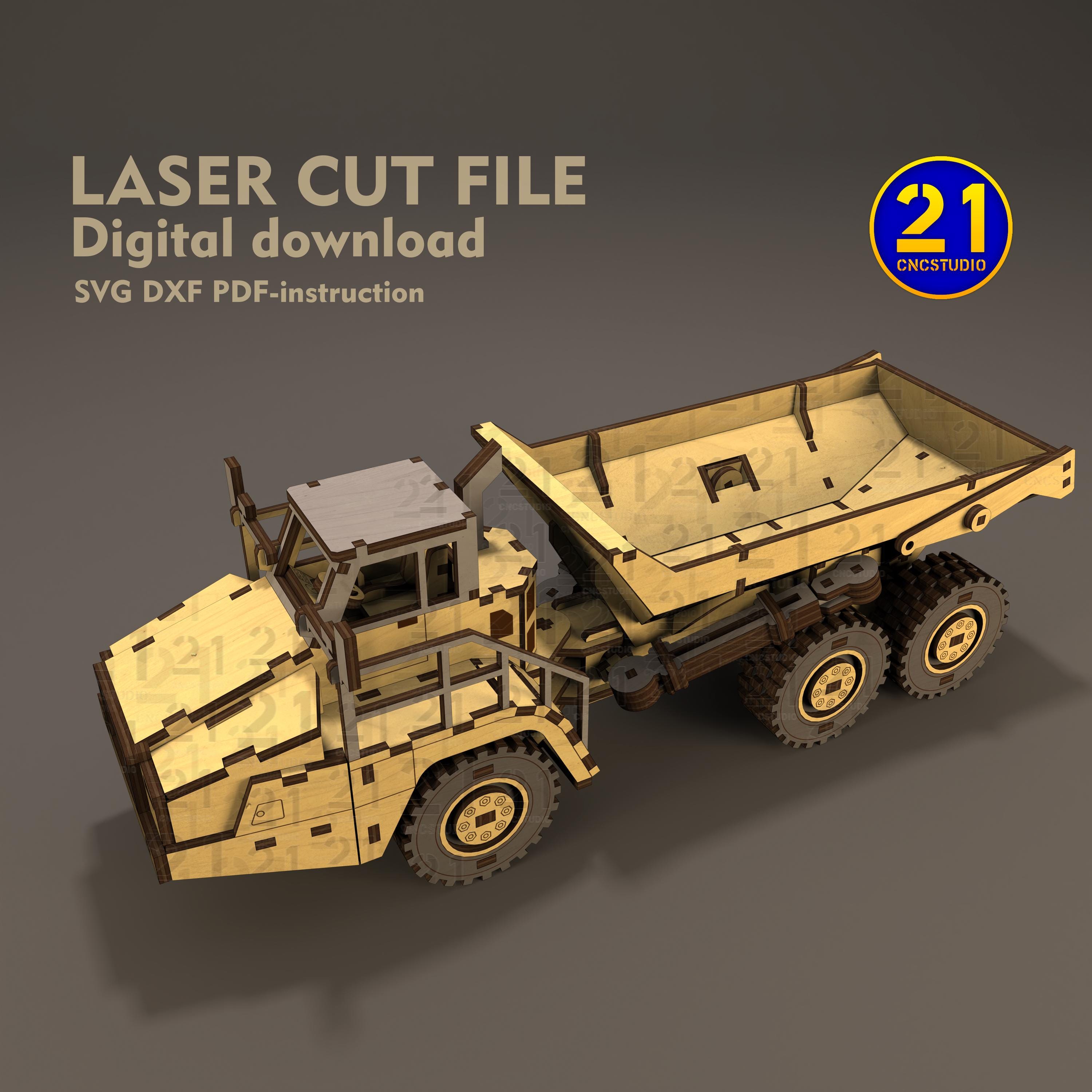

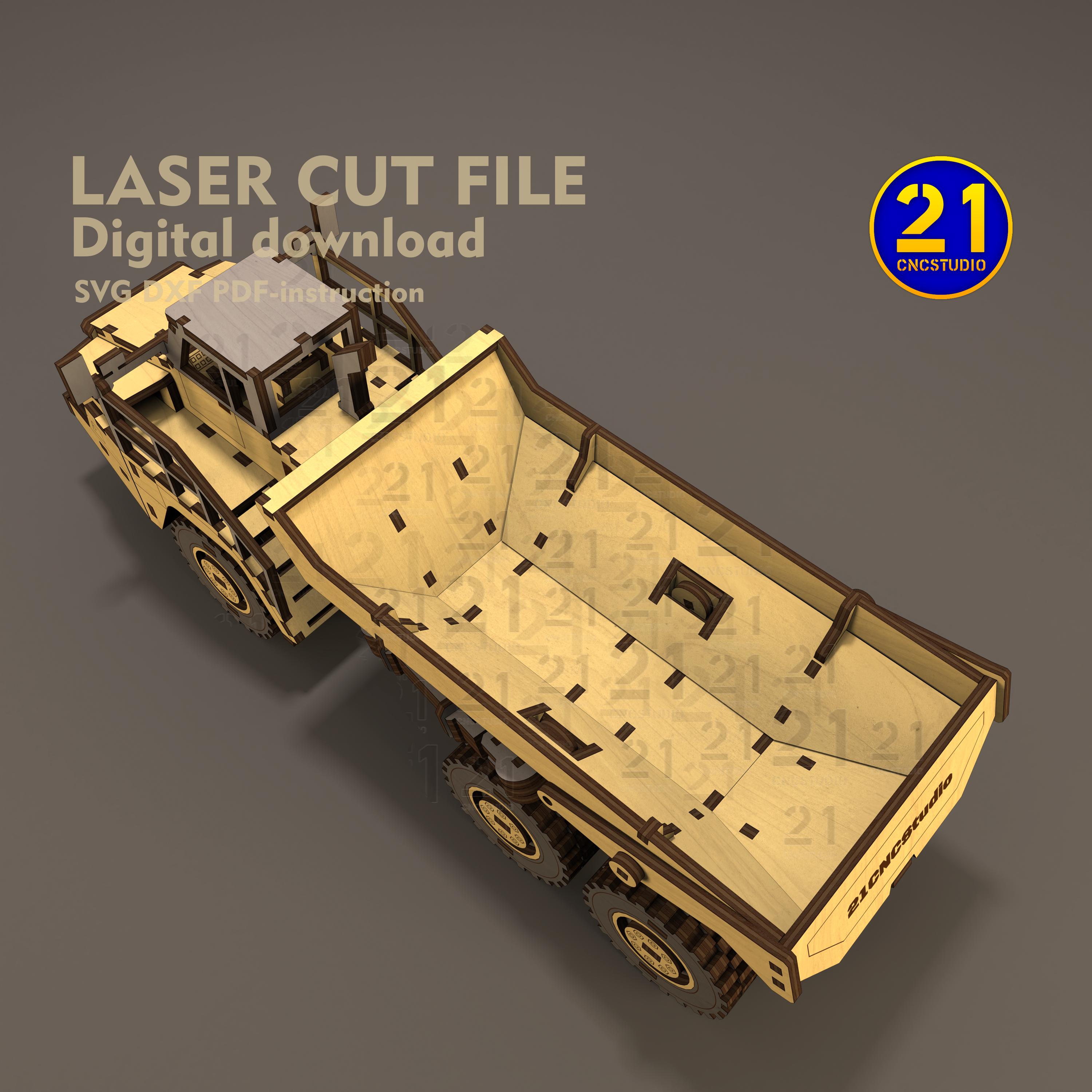

• Realistic tilting dump bed and articulated chassis
• Rotating wheels and functional design details
• Optimized for 3mm, 4mm and 1/8" plywood
• Includes step-by-step PDF assembly instructions
• Digital formats: SVG, DXF, PDF — ready for Glowforge, xTool, OMTech, and other CO₂ or diode laser cutters
• Parts arranged on 280×280mm 3mm sheets(4pcs) for easy use

Why You’ll Love It:
• Inspired by the powerful CAT 745 dump truck
• Great for construction enthusiasts and skilled crafters
• A challenging and impressive piece to display
• Add it to your collection of wooden construction models

Please Note:
• This is a digital download — no physical item will be shipped
• Personal use only. Contact us for a commercial license
• Contains small parts — not suitable for young children

Digital downloads

File delivery

Your files will be available to download once payment is confirmed.

Payment Options

Secure options
  • Accepts Etsy gift cards

Returns & Exchanges

I don't accept returns, exchanges, or cancellations

But please contact me if you have any problems with your order.

Privacy policy

21CNCStudio File Use Policy

Welcome to 21CNCStudio! My name is Volodymyr Papush, and I appreciate your interest in my work. To ensure understanding and compliance with the usage of our laser cutting files, please review our policy below.

Personal Use:
Upon purchasing files from 21CNCStudio, you are granted the right to use them for creating models for personal purposes only. This means you are free to create items for yourself, friends, and family without any commercial intent.

Commercial Use and Distribution:
Any commercial use of the purchased files, including selling products made with them, without prior consent is prohibited. Distribution or sharing of the files with third parties is also prohibited. Copyrights on the designs are protected and enforceable in 160 countries worldwide.

Copyright Protection:
We take copyright protection seriously and will take appropriate measures in the event of infringement. This may include legal action to protect our rights and intellectual property.

Commercial License:
If you are interested in using our files for commercial purposes, please contact me directly to discuss the terms of obtaining a commercial license.

Thank you for understanding and adhering to our policy. We value your support and are committed to providing high-quality files for your projects.

Best regards,
Volodymyr Papush, 21CNCStudio

Reviews (1)

Average:

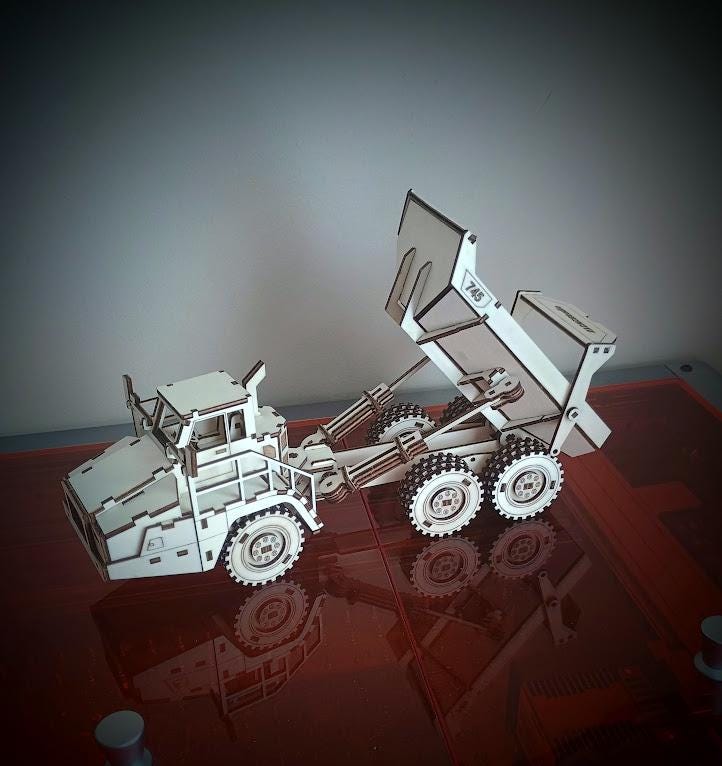

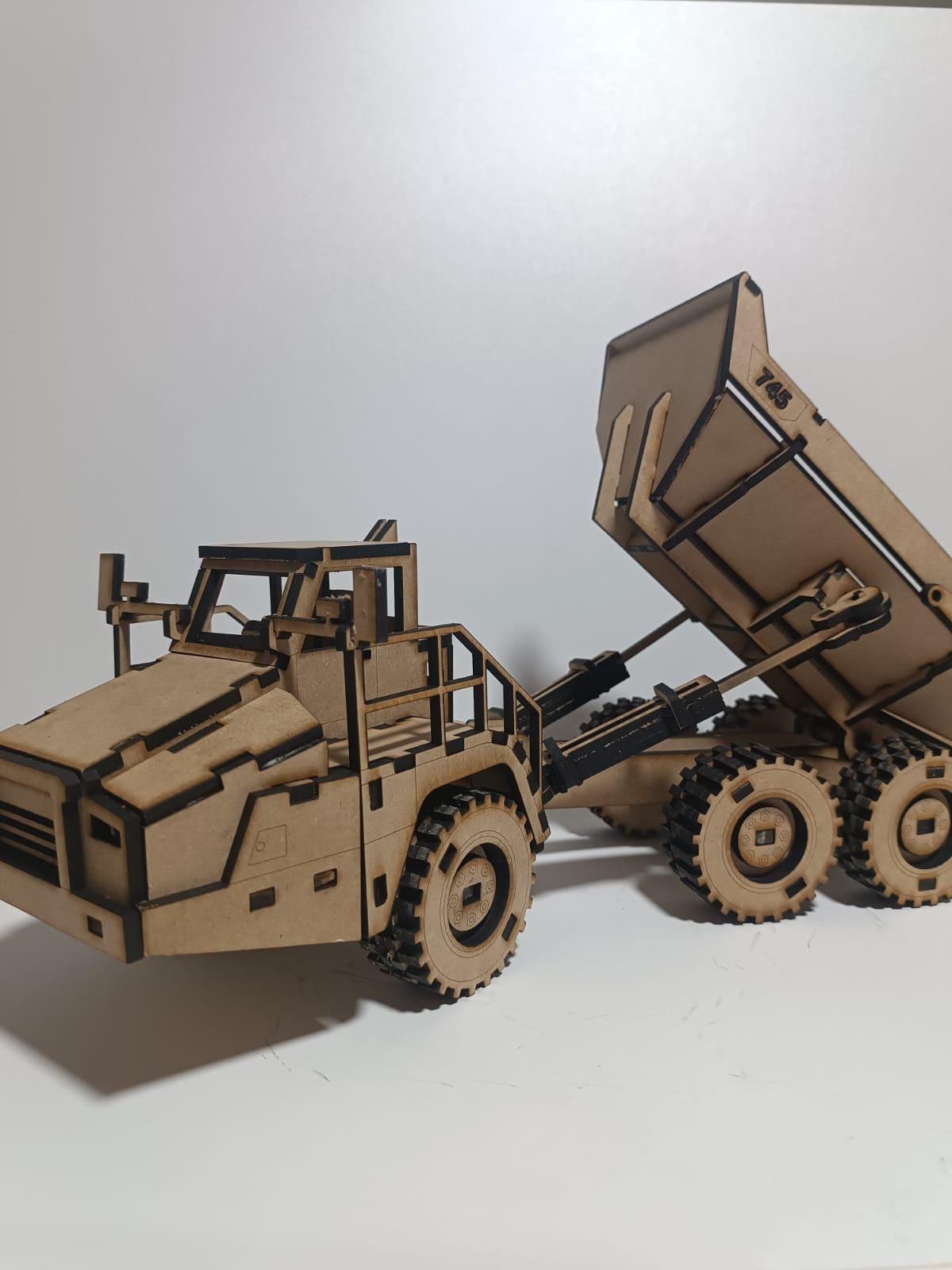

Great pattern and assy instructions. No problems with build. Cut from poplar plywood
