$12.41

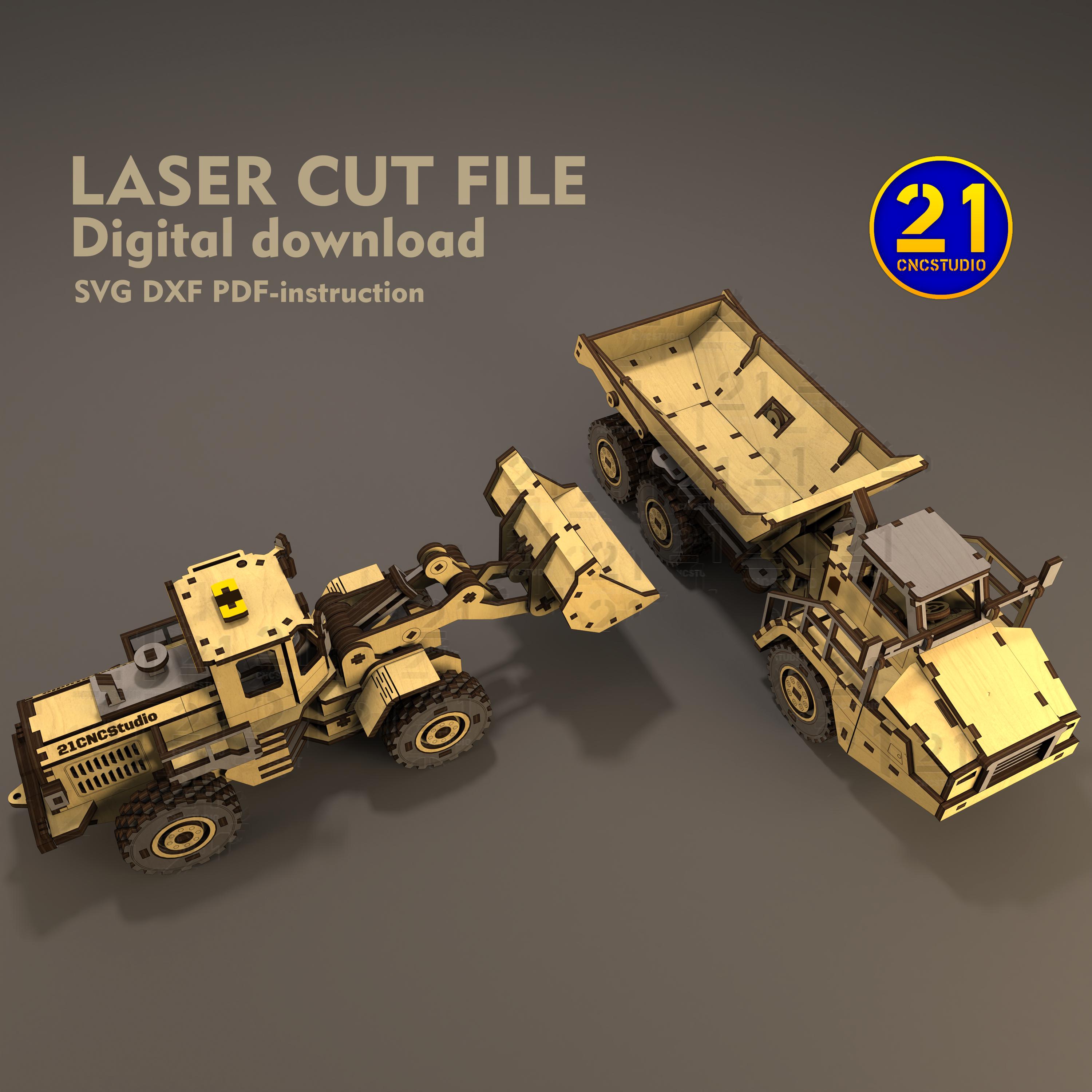

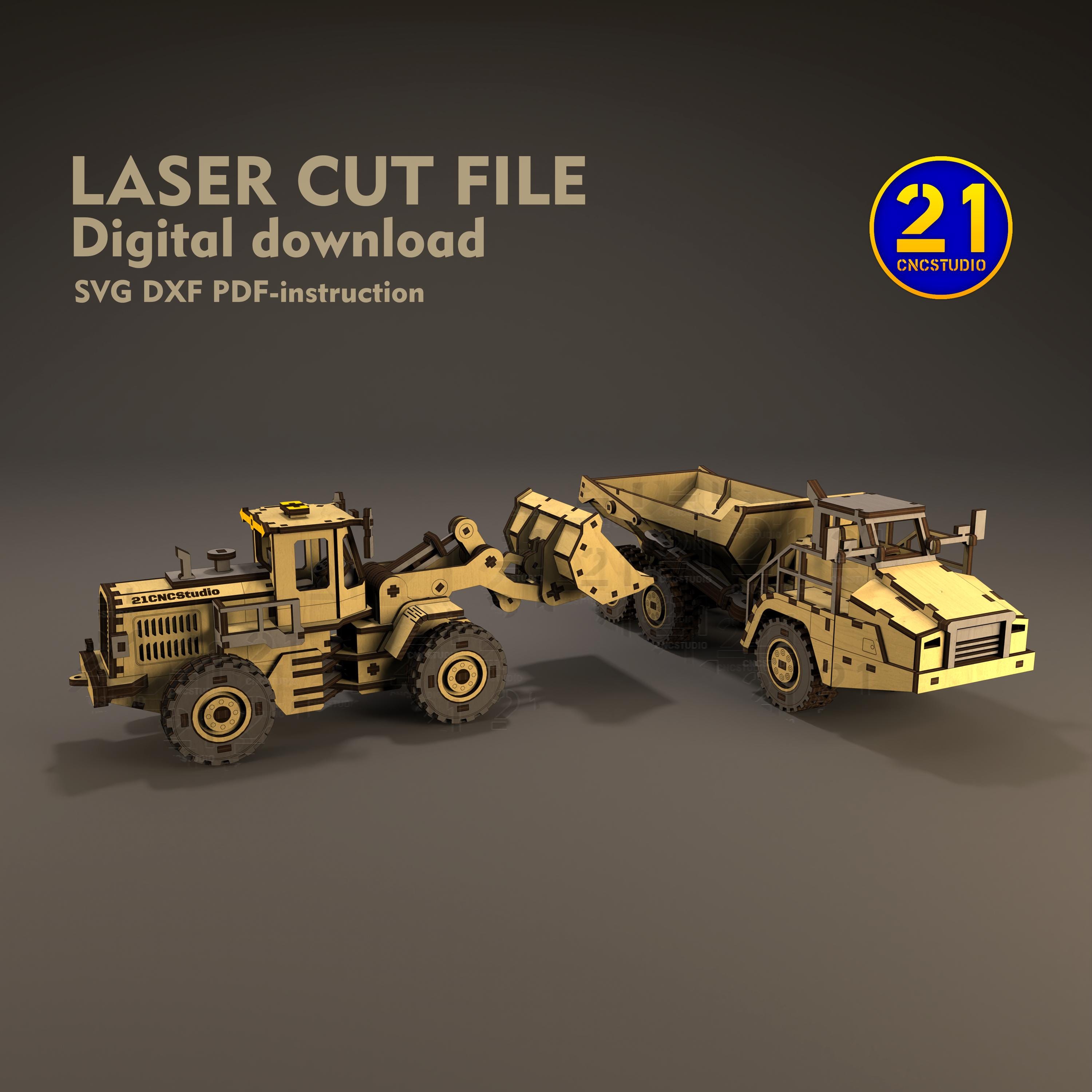

Build two construction vehicles from one digital set: an articulated dump truck and a front loader. Both have working model parts and are intended for experienced builders.
This is a digital download for making the design yourself. No physical item, plywood or hardware is shipped.
WHAT YOU RECEIVE
- PDF assembly instructions
- ZIP archives (extract before opening)
PROJECT DETAILS
Approximate scale: 1:35.

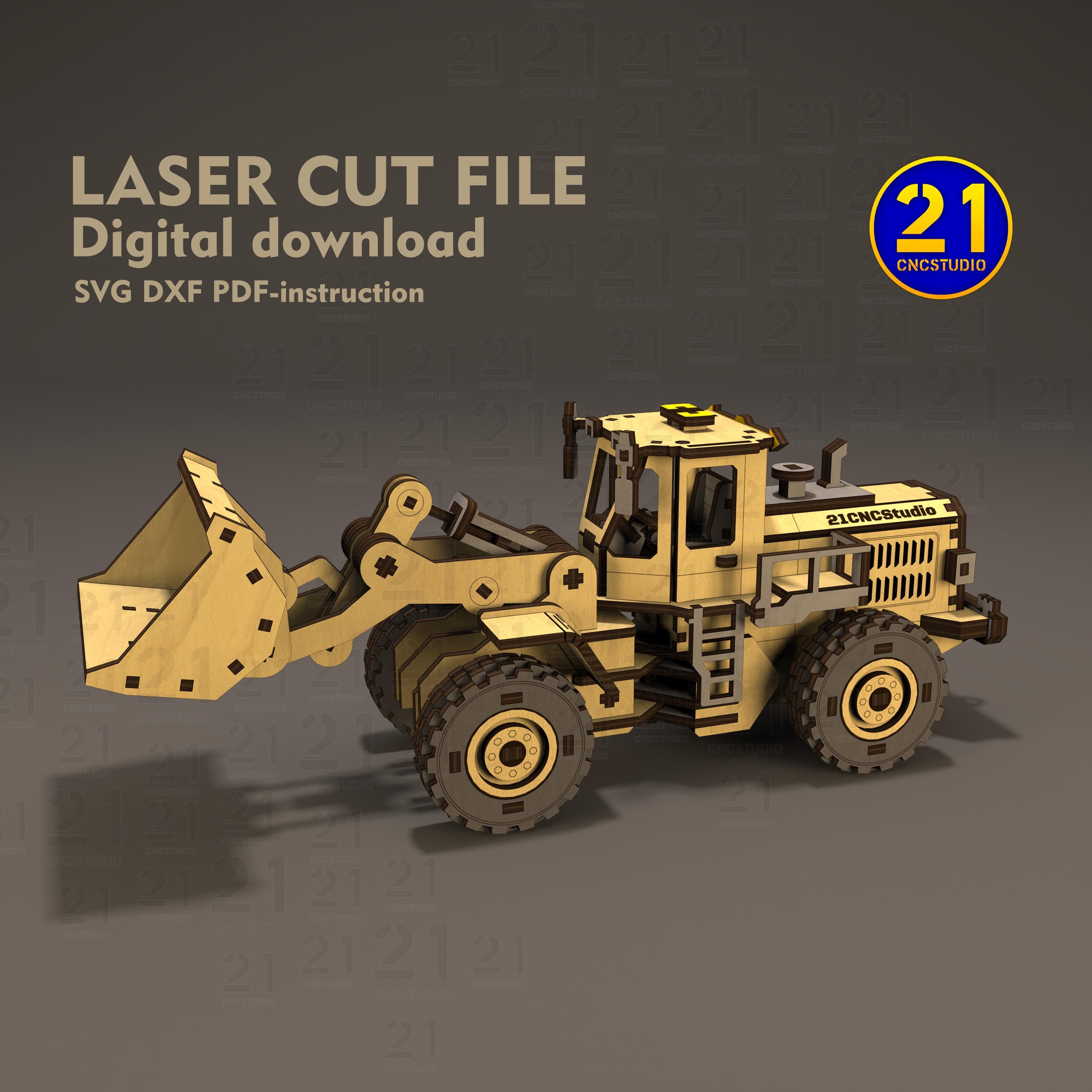

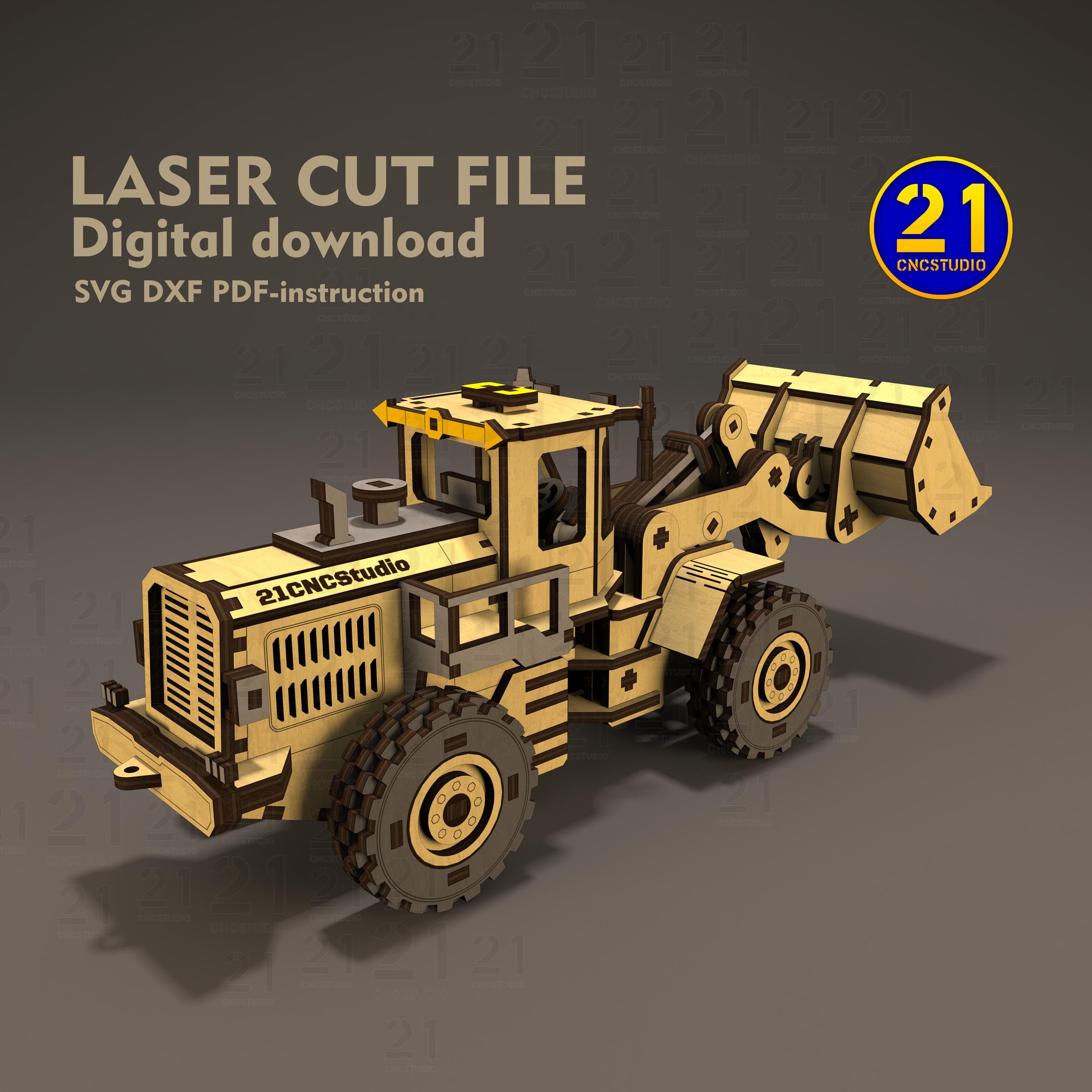

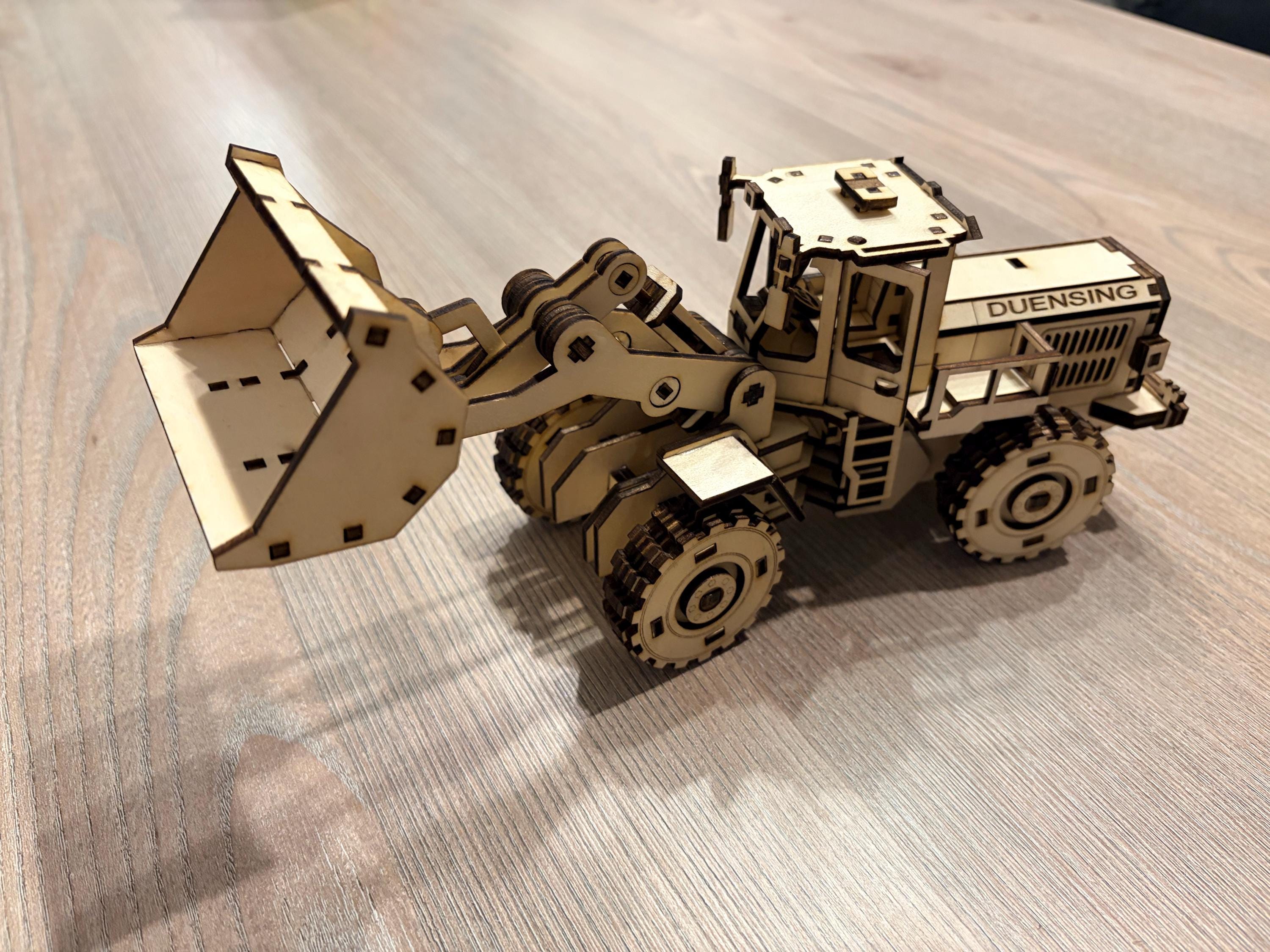

Front loader: 267 × 225 × 114 mm, with lifting and tilting bucket, rotating wheels, turning body and opening cab door.

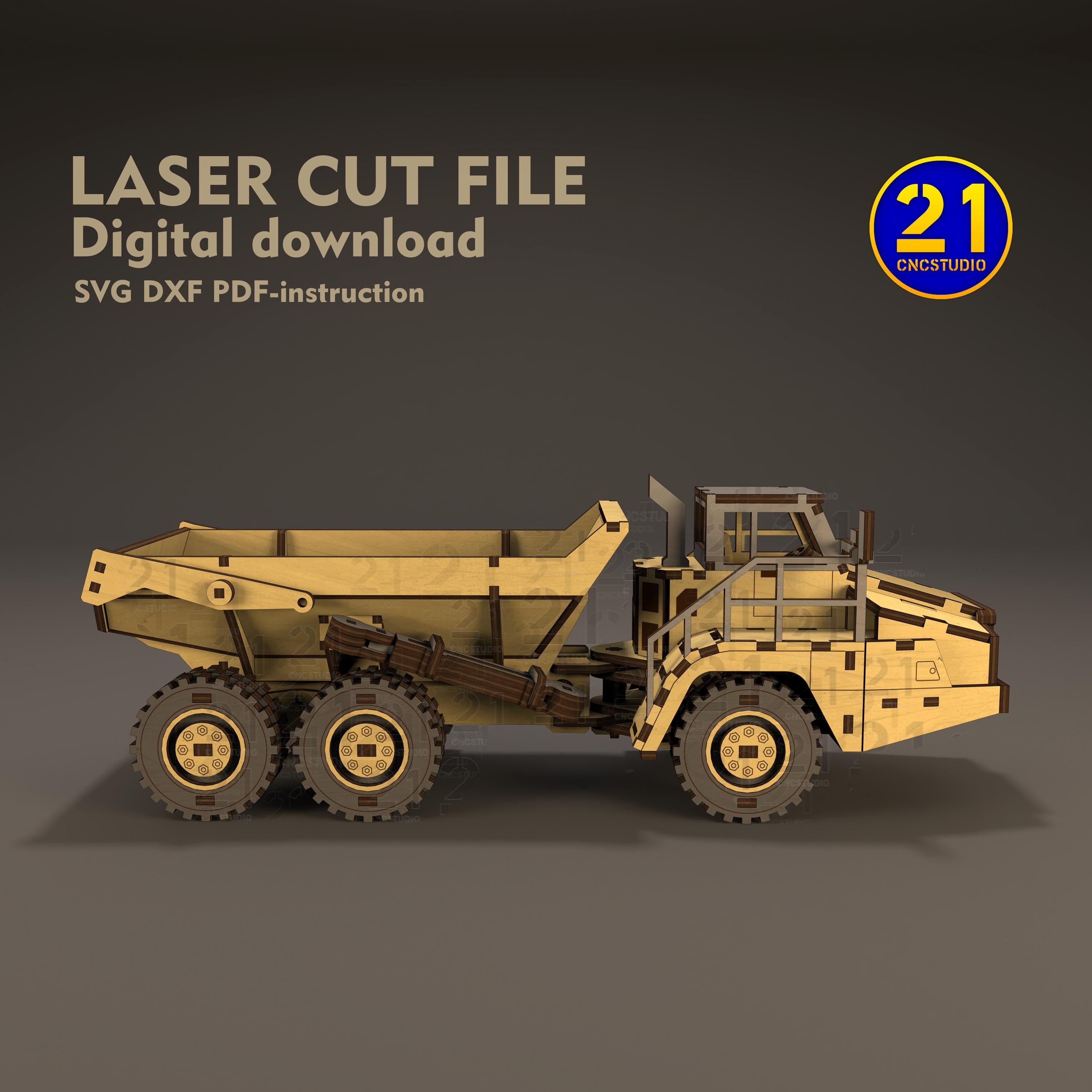

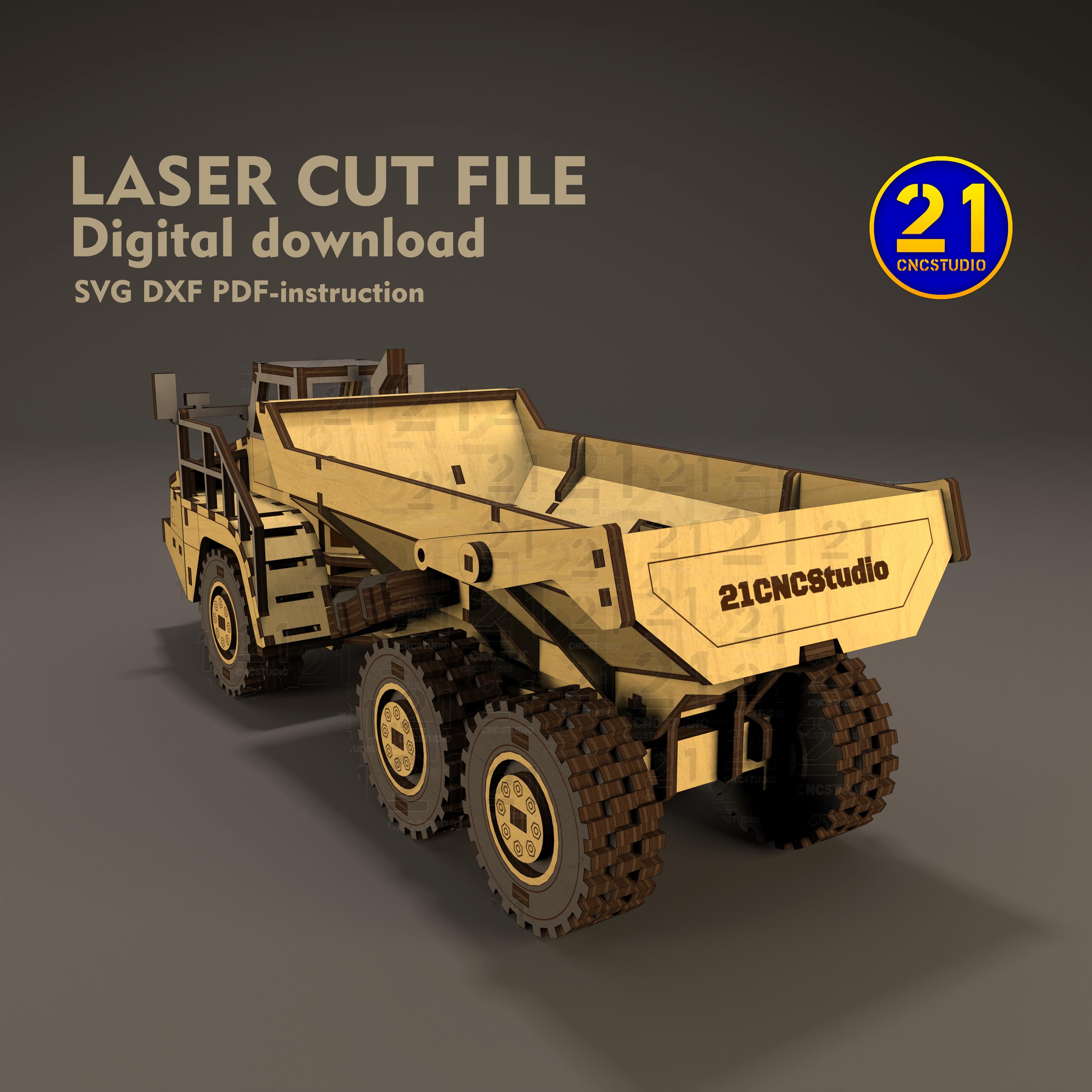

Dump truck: 310 × 103 × 120 mm, with tilting bed, articulated steering and rotating wheels.
Designed for 3 mm, 4 mm and 1/8 inch plywood. The 3 mm layouts use three and four 280 × 280 mm sheets respectively. PDF assembly instructions are included for both models.
These are complex models with small parts.
BEFORE YOU CUT
Check that your laser software can open the supplied formats and that the layout fits your work area. Use the supplied version that matches your actual material thickness.
If you uniformly enlarge a slotted model, its slots and tabs enlarge too, so proportionally thicker plywood is required. For example, scaling a 3 mm design to 150% requires approximately 4.5 mm actual plywood thickness. Scale all parts equally; the finished dimensions also change. Measure your material and test the fit and kerf before cutting the full project. Message me if you need help with sizing.
USAGE TERMS
For personal use. Contact 21CNCStudio before using this design commercially or selling finished items. Do not resell, share or redistribute the digital files without permission.
Your files will be available to download once payment is confirmed.
But please contact me if you have problems with your order
21CNCStudio File Use Policy
Welcome to 21CNCStudio! My name is Volodymyr Papush, and I appreciate your interest in my work. To ensure understanding and compliance with the usage of our laser cutting files, please review our policy below.
Personal Use:
Upon purchasing files from 21CNCStudio, you are granted the right to use them for creating models for personal purposes only. This means you are free to create items for yourself, friends, and family without any commercial intent.
Commercial Use and Distribution:
Any commercial use of the purchased files, including selling products made with them, without prior consent is prohibited. Distribution or sharing of the files with third parties is also prohibited. Copyrights on the designs are protected and enforceable in 160 countries worldwide.
Copyright Protection:
We take copyright protection seriously and will take appropriate measures in the event of infringement. This may include legal action to protect our rights and intellectual property.
Commercial License:
If you are interested in using our files for commercial purposes, please contact me directly to discuss the terms of obtaining a commercial license.
Thank you for understanding and adhering to our policy. We value your support and are committed to providing high-quality files for your projects.
Best regards,
Volodymyr Papush, 21CNCStudio
Oct 23, 2026
Herşey güzel yolunda başarılı bir çalışma .
Aug 20, 2026
Esta buenos los diseños, fácil de seguir las instrucciones.
Aug 2, 2026
Muy bueno el proyecto fácil de armar todo calza perfecto muy recomendable
Jun 24, 2026

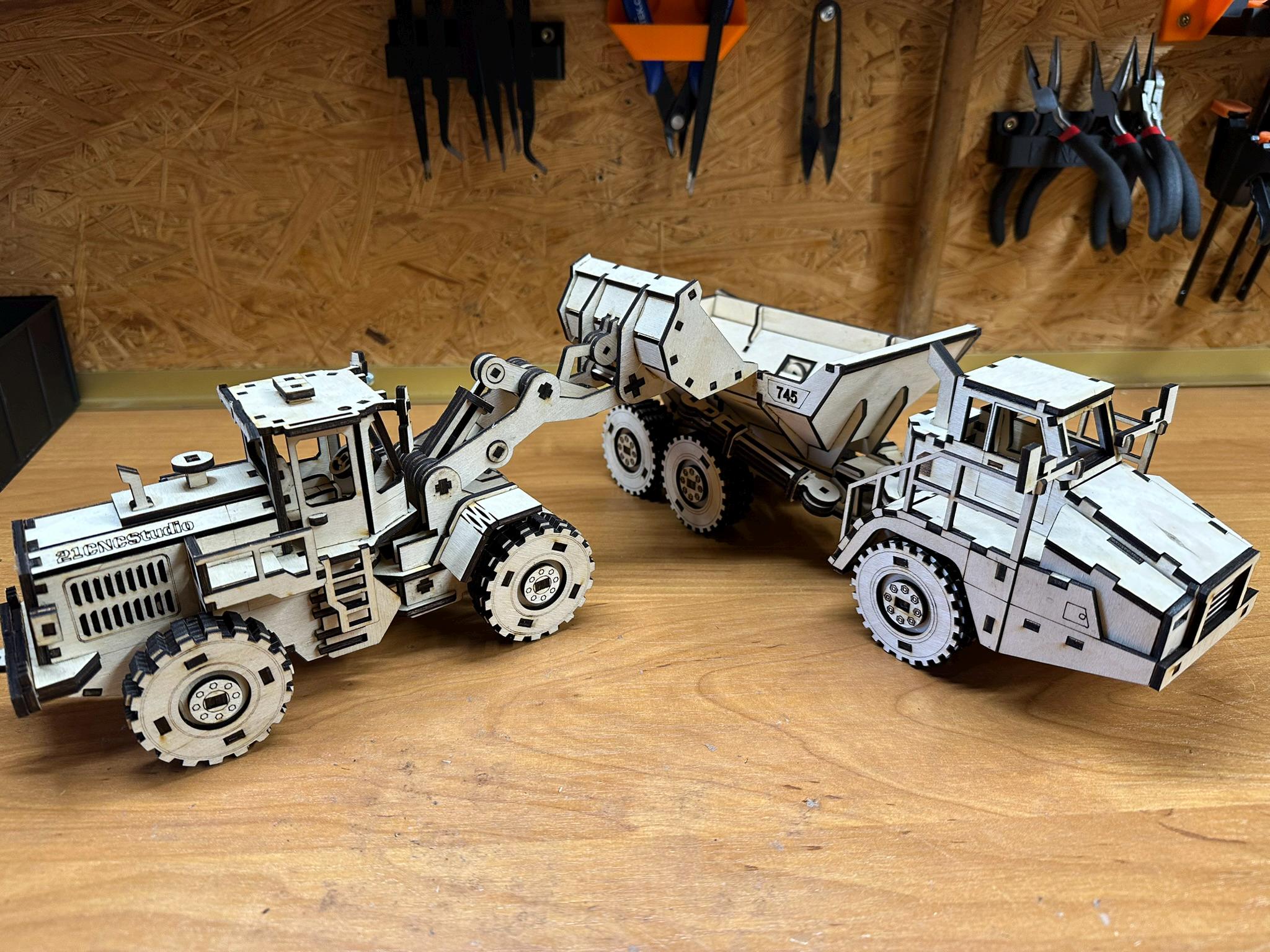

Great file Cut and build was Fun
